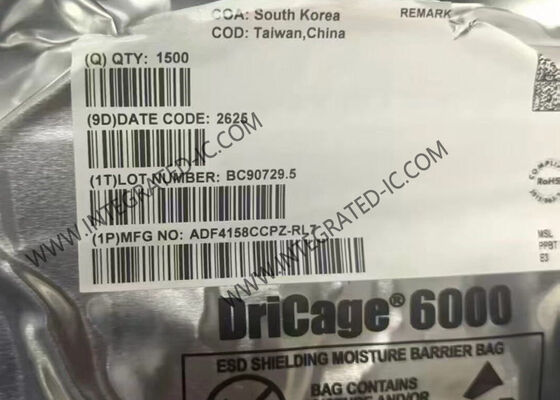

ADF4158CCPZ 6.1GHz Wireless Communication Module with Subhertz Resolution and Frequency Modulation Capability

ADF4158 is a 6.1 GHz, fractional-N frequency synthesizer with modulation and waveform generation capability. It contains a 25-bit fixed modulus, allowing subhertz resolution at 6.1 GHz. The device consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. A sigma-delta (Σ-Δ) based fractional interpolator enables programmable fractional-N division, where the INT and FRAC registers define an overall N-divider as N = INT + (FRAC/2²⁵).

ADF4158CCPZ ADF4158CCP ADF4158CC ADF4158C ADF4158

Shenzhen Mingjiada Electronics Co., Ltd. is an authorized independent distributor of electronic components of world-renowned brands. Founded in Shenzhen in 1996, Mingjiada has successively established branches in Hong Kong, Japan, Russia, and Taiwan. We have passed certifications carried out in accordance with ISO9001:2014 for quality management systems and ISO14001:2014 for environmental management systems. With an experienced team in sales, R&D and management, we specialize in distributing products from more than 500 well-known manufacturers. Adhering to the tenet of "maximizing benefits for customers", we offer a complete range of products and also provide high-quality and responsive service with our professional logistics and customer service teams. Mingjiada has developed into a major (authorized and non-authorized) electronic component distributor that is well known in domestic and foreign IC markets.
