IR3550MTRPBF Integrated Circuit Chip 60A Integrated PowIRstage PQFN-32 Gate Drivers

IR3550MTRPBF Integrated Circuit Chip 60A Integrated PowIRstage PQFN-32 Gate Drivers

Product Description Of IR3550MTRPBF

IR3550MTRPBF integrated PowIRstage® is a synchronous buck gate driver co-packed with a control MOSFET and a synchronous MOSFET with integrated Schottky diode. It is optimized internally for PCB layout, heat transfer and driver/MOSFET timing. Custom designed gate driver and MOSFET combination enables higher efficiency at lower output voltages required by cutting edge CPU, GPU and DDR memory designs.

Specification Of IR3550MTRPBF

Features Of IR3550MTRPBF

Peak efficiency up to 95% at 1.2V
Integrated driver, control MOSFET, synchronous MOSFET and Schottky diode
Input voltage (VIN) operating range up to 15V
Output voltage range from 0.25V to Vcc-2.5V, or to 5.5V if internal current sense amplifier is not used
Output current capability of 60A DC
Operation up to 1.0MHz
Integrated current sense amplifier
VCC under voltage lockout
Thermal flag
Body-Braking® load transient support
Diode-emulation high efficiency mode
Compatible with 3.3V PWM logic and VCC tolerant
Compliant with Intel DrMOS V4.0
PCB footprint compatible with IR3551 and IR3553
Efficient dual sided cooling

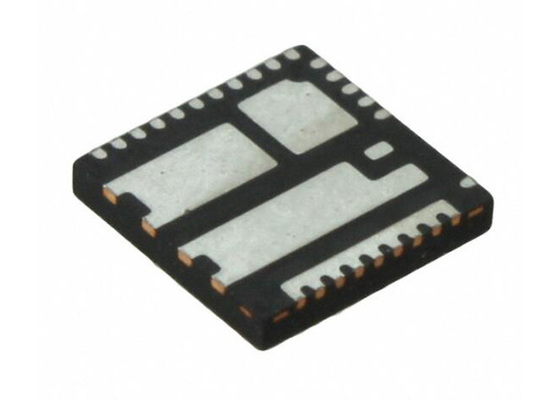

Small 6mm x 6mm x 0.9mm PQFN package
Lead free RoHS compliant package

Applications Of IR3550MTRPBF

Voltage Regulators for CPUs, GPUs, and DDR memory arrays
High current, low profile DC-DC converters

Basic Application Circuit Of IR3550MTRPBF
