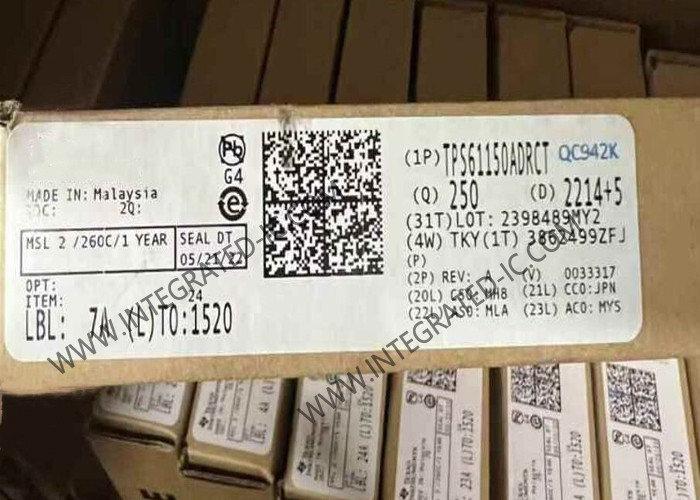

TPS61150ADRCT Integrated Circuit Chip Dual Output Boost WLED Driver Using Single Inductor

TPS61150ADRCT Integrated Circuit Chip Dual Output Boost WLED Driver Using Single Inductor
TPS61150ADRCT Integrated Circuit Chip Dual Output Boost WLED Driver Using Single Inductor

Large Image :  TPS61150ADRCT Integrated Circuit Chip Dual Output Boost WLED Driver Using Single Inductor

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS61150ADRCT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSON-10
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

TPS61150ADRCT Integrated Circuit Chip Dual Output Boost WLED Driver Using Single Inductor

Description
Part Number: TPS61150ADRCT Input Voltage:: 2.5 V To 6 V
Input Voltage - Max:: 6 V Input Voltage - Min:: 2.5 V
Low Level Output Current:: 34 MA Operating Frequency:: 1.2 MHz

TPS61150ADRCT Integrated Circuit Chip Dual Output Boost WLED Driver Using Single Inductor



Product Description Of TPS61150ADRCT
TPS61150ADRCT is a high frequency boost converter with two regulated current outputs for driving WLEDs. Each current output can be individually programmed through external resistors. There is dedicated selection pin for each output, so the two outputs can be turned on separately or simultaneously. The output current can be reduced by a pulse width modulation (PWM) signal on the select pins or an analog voltage on the ISET pin. The boost regulator runs at 1.2MHz fixed switching frequency to reduce output ripple and avoid audible noises associated with PFM control.



Specification Of TPS61150ADRCT

Features:

Integrated Switch

Input Voltage:

2.5 V to 6 V

Input Voltage - Max:

6 V

Input Voltage - Min:

2.5 V

Low Level Output Current:

34 mA

Maximum Operating Temperature:

+ 85 C

Minimum Operating Temperature:

- 40 C

Number of Channels:

2 Channel

Number of Outputs:

2 Output

Operating Frequency:

1.2 MHz

Output Current:

700 mA

Output Voltage:

27 V

Pd - Power Dissipation:

370 mW

Unit Weight:

26.100 mg



Features Of TPS61150ADRCT
2.5V to 6V Input Voltage Range
0.7A Integrated Switch
Built-in Power Diode
1.2MHz Fixed PWM Frequency
Individually Programmable Output Current
Input-to-Output Isolation
Built-in Soft Start
27V Overvoltage Protection
3% at 15mA Matching between Two Current Strings, Improvement from TPS61150/1
Up to 83% Efficiency
Up to 30kHz PWM Dimming Frequency
Availiable in a 10 Pin, 3 × 3 mm QFN Package



Applications Of TPS61150ADRCT
Up to 14 WLED Driver for Media Form Factor Display
Sub and Main Display Backlight in Clam Shell Phones
Display and Keypad Backlight in Portable Equipment
