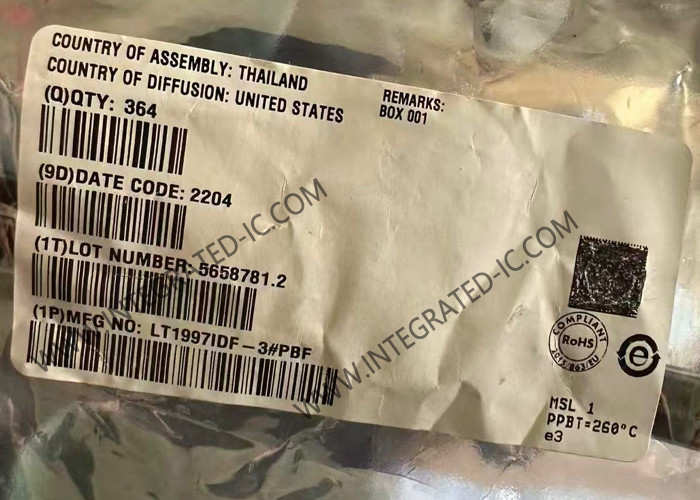

LT1997IDF-3 Integrated Circuit Chip Operational Amplifiers DFN-14 Precision Amplifiers

LT1997IDF-3 Integrated Circuit Chip Operational Amplifiers DFN-14 Precision Amplifiers​

Product Description Of LT1997IDF-3

LT1997IDF-3 is Precision, Wide Voltage Range Gain Selectable Amplifier. LT1997IDF-3 combines a precision operational amplifier with highly-matched resistors to form a one-chip solution for accurately amplifying voltages. Gains from –13 to +14 with accuracy of 0.006% (60ppm) can be achieved using no external components.

LT1997IDF-3 is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a common mode rejection ratio of greater than 91dB.

Specification Of LT1997IDF-3

Features Of LT1997IDF-3

Pin Configurable as a Difference Amplifier, Inverting Amplifier or Noninverting Amplifier
91dB Minimum DC CMRR (Gain = 1)
65dB AC CMRR (at 100kHz, Gain = 1)
0.006% (60ppm) Maximum Gain Error (Gain = 1)
1ppm/°C Maximum Gain Error Drift
2ppm Maximum Gain Nonlinearity
±160V Common Mode Voltage Range
Wide Supply Voltage Range: 3.3V to 50V
Rail-to-Rail Output
350μA Supply Current
60μV Maximum Op Amp Offset Voltage
1.1MHz –3dB Bandwidth (Gain = 1)
Low-Power Shutdown: 20μA

Applications Of LT1997IDF-3

High Side or Low Side Current Sensing
Bidirectional Wide Common Mode Range Current Sensing
High Voltage to Low Voltage Level Translation
Industrial Data-Acquisition Front-Ends
Replacement for Isolation Circuits
Differential to Single-Ended Conversion
