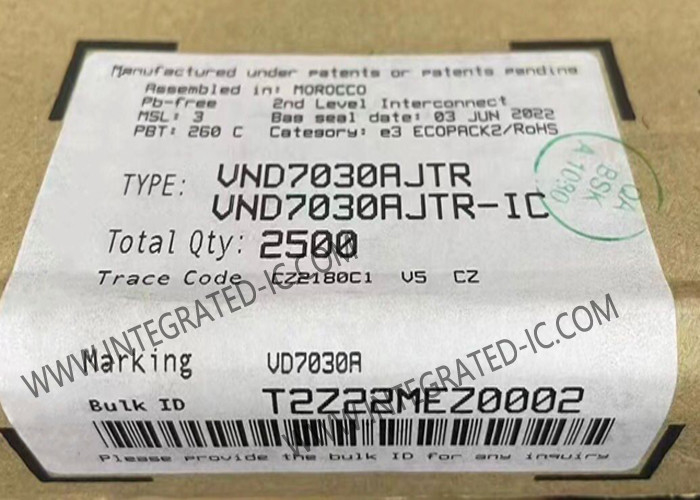

VND7030AJTR Integrated Circuit Chip 40A Double Channel High-Side Driver PowerSSO-16

VND7030AJTR Integrated Circuit Chip 40A Double Channel High-Side Driver PowerSSO-16

Product Description Of VND7030AJTR

VND7030AJTR is a double channel high-side driver manufactured using ST proprietary VIPower® M0-7 technology and housed in PowerSSO-16 package. VND7030AJTR is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics.

VND7030AJTR integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch-off.

Specification Of VND7030AJTR

Features Of VND7030AJTR

• General
− Double channel smart high-side driver with MultiSense analog feedback
− Very low standby current
− Compatible with 3V and 5V CMOS outputs
• MultiSense diagnostic functions
− Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature
− Overload and short to ground (power limitation) indication
− Thermal shutdown indication
− OFF-state open-load detection
− Output short to VCC detection
− Sense enable/disable
• Protections
− Undervoltage shutdown
− Overvoltage clamp
− Load current limitation
− Self limiting of fast thermal transients
− Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin
− Loss of ground and loss of VCC
− Reverse battery with external components
− Electrostatic discharge protection

Applications Of VND7030AJTR

All types of Automotive resistive, inductive and capacitive loads
Specially intended for automotive signal lamps (up to 2 x P21W or SAE1156 and R5W paralleled or LED rear combinations)
