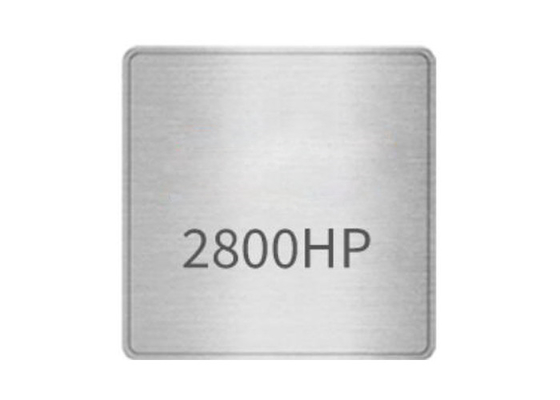

BES2800HP BT IC Dual-Mode BT 5.4 Ultra-Low Power Smart Audio SoC BGA-220

BES2800HP BT IC Dual-Mode BT 5.4 Ultra-Low Power Smart Audio SoC BGA-220

Product Description Of BES2800HP

BES2800HP is an ultra-low power, high performance, smart audio SoC with integrated BT and Wi-Fi (optional). The platform incorporates a powerful CPU subsystem comprising a dual-core Arm Cortex-M55 processor with a dual-core BECO NPU, a BES proprietary coprocessor for advance signal processing and NN workloads, a Tensilica HiFi 4 DSP (optional), an audio codec, and a host subsystem comprising a dual-core STAR-MC1 processor with a dual-core BECO NPU. This combination significantly reduces power consumption while providing substantial application processing capabilities.

BES2800HP The platform incorporates a dual-mode BT 5.4 subsystem for both BT classic and LE audio, and a Wi-Fi 6 subsystem for high-throughput wireless connectivity and lossless audio.

Features Of BES2800HP

CPU Subsystem
- Dual-core ARM Cortex-M55
- Tensilica HiFi 4 DSP (optional)
Host Subsystem
- Dual-core STAR-MC1
- Sensor engine
Memory and Storage
- Shared 8.3 MB SRAM
- Flash in package
- boot ROM
BT Subsystem: Dual-mode BT 5.4 with LE audio
Wi-Fi Subsystem: Dual-Band 2.4G and 5G Wi-Fi IEEE 802.11 a/b/g/n/ax (optional)
Audio and Voice Features
- 2x DACs
- 4x ADCS
Peripheral Interfaces
- eMMC/SDIO/GPADC/SPI/12C/UART/I2S/TDM/PWM/DMIC/SPDIF/US
Package: 220-pin BGA

Applications Of BES2800HP

Smart Wi-Fi and BT headphones / gaming headsets with ANC
Smart TWS earbuds with real-time adaptive ANC
Smart wireless speakers
Smart glasses
Other portable audio devices

System Block Diagram Of BES2800HP
