STF22NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

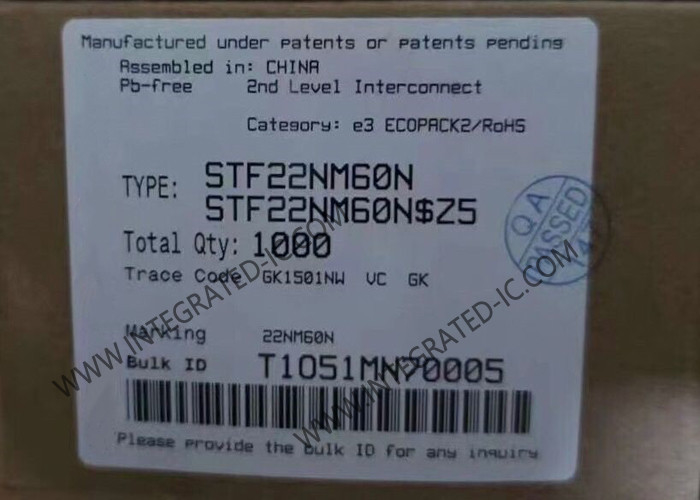

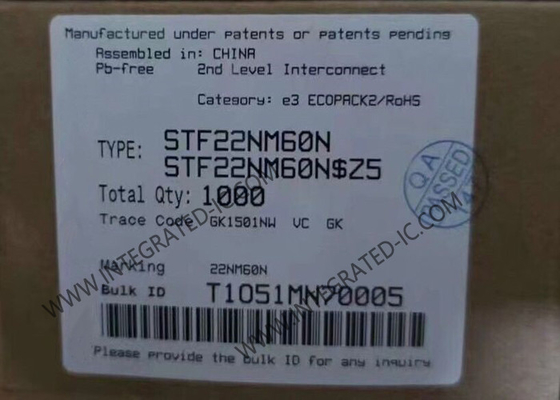

Large Image : STF22NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	STF22NM60N

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-220-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

STF22NM60N Integrated Circuit Chip 600V MDmesh II N-Channel Power MOSFET Transistors

Description

Part Number:	STF22NM60N	Drain To Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	16A (Tc)	Drive Voltage (Max Rds On, Min Rds On):	10V
Power Dissipation (Max):	30W (Tc)	Operating Temperature:	-55°C ~ 150°C (TJ)
Highlight:	STF22NM60N Integrated Circuit Chip , N-Channel Power MOSFET Transistors , 600V Integrated Circuit Chip

STF22NM60N Integrated Circuit Chip 600V MDmesh™ II N-Channel Power MOSFET Transistors

Product Description Of STF22NM60N

STF22NM60N is N-channel Power MOSFET Transistors developed using the second generation of MDmesh™ technology.

Specification Of STF22NM60N

Part Number:	STF22NM60N
Technology:	Si
Mounting Style:	Through Hole
Package / Case:	TO-220-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	650 V
Id - Continuous Drain Current:	16 A
Rds On - Drain-Source Resistance:	220 mOhms
Vgs - Gate-Source Voltage:	- 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage:	3 V
Qg - Gate Charge:	44 nC
Minimum Operating Temperature:	- 55 ℃
Maximum Operating Temperature:	+ 150 ℃
Pd - Power Dissipation:	30 W
Channel Mode:	Enhancement
Configuration:	Single
Fall Time:	38 ns
Product Type:	MOSFETs
Rise Time:	18 ns
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	74 ns
Typical Turn-On Delay Time:	11 ns

Features Of STF22NM60N

100% avalanche tested
Low input capacitance and gate charge
Low gate input resistance

Applications Of STF22NM60N

Switching applications
