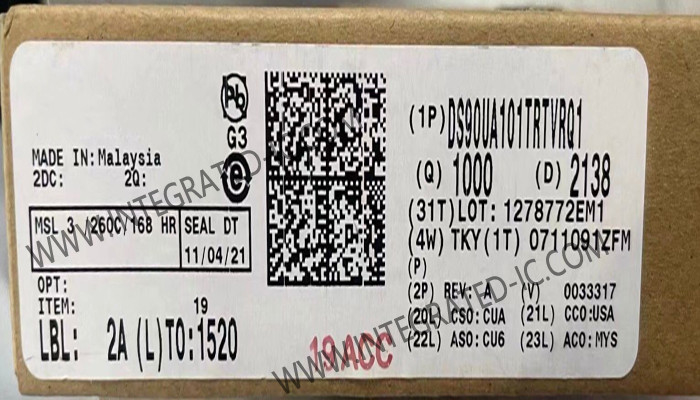

DS90UA101TRTVRQ1 Integrated Circuit Chip 600Mbps Automotive Multi-Channel Digital Audio Link

DS90UA101TRTVRQ1 Integrated Circuit Chip 600Mbps Automotive Multi-Channel Digital Audio Link​

Product Description Of DS90UA101TRTVRQ1

DS90UA101TRTVRQ1 is Automotive Multi-Channel Digital Audio Serializer, The Serializer embeds the clock and level shifts the signals to high-speed low-voltage differential signaling. The device serializes up to eight digital audio data inputs, word/frame sync, bit clock, and system clock.

Specification Of DS90UA101TRTVRQ1

Features Of DS90UA101TRTVRQ1

Digital Audio Serializer
Flexible Digital Audio Inputs, supporting I2S (Stereo) or TDM (Multi-Channel) Formats
Coaxial or Single Differential Pair Interconnect
High Speed Serial Output Interface
Very Low Latency (<15µs)
Bidirectional Control Interface Channel with I2C-Compatible Serial Control Bus
Supports up to 8 Stereo I2S or TDM Audio Inputs
Supports Audio System Clocks from 10MHz to 50MHz
Single 1.8V Supply
1.8V or 3.3V I/O Interface
4/4 Dedicated General Purpose Inputs/Outputs
AC-Coupled STP or Coaxial Cable up to 15m
DC-Balanced & Scrambled Data w/ Embedded Clock
Automotive Grade Product: AEC-Q100 Grade 2 Qualified
Temperature Range: –40°C to 105°C

Applications Of DS90UA101TRTVRQ1

Automotive Infotainment Systems
Active Noise Cancellation Systems
Distributed Multi-Channel Audio Systems
