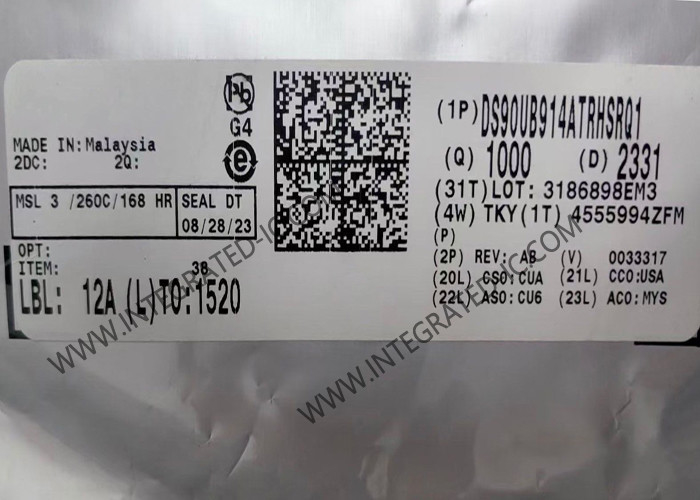

DS90UB914ATRHSRQ1 Integrated Circuit Chip High-Speed FPD-Link III Deserializer WQFN-48 Package
DS90UB914ATRHSRQ1 Integrated Circuit Chip High-Speed FPD-Link III Deserializer WQFN-48 Package
Description
Part Number:
DS90UB914ATRHSRQ1
Input Type::
LVDS
Output Type::
LVCMOS
Number Of Inputs::
1 Input
Number Of Outputs::
2 Output
Supply Voltage - Max::
1.89 V
Highlight:
DS90UB914ATRHSRQ1
,
DS90UB914ATRHSRQ1 Integrated Circuit Chip
,
High-Speed FPD-Link III Deserializer
DS90UB914ATRHSRQ1 Integrated Circuit Chip High-Speed FPD-Link III Deserializer WQFN-48 Package
Product Description Of DS90UB914ATRHSRQ1
DS90UB914ATRHSRQ1 device offers an FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single coaxial cable or differential pair. The DS90UB914ATRHSRQ1 device incorporates differential signaling on both the high-speed forward channel and bidirectional control channel data paths. The deserializer is targeted for connections between imagers and video processors in an ECU (Electronic Control Unit). This device is ideally suited for driving video data requiring up to 12-bit pixel depth plus two synchronization signals along with bidirectional control channel bus.
Specification Of DS90UB914ATRHSRQ1
Serializer/Deserializer
LVDS
LVCMOS
1 Input
2 Output
1.89 V
1.71 V
- 40 C
+ 105 C
Moisture Sensitive:
Yes
Operating Supply Current:
1 uA
Operating Supply Voltage:
1.8 V
Unit Weight:
40 mg
Feature Of DS90UB914ATRHSRQ1
Qualified for automotive applications AEC-Q100
Device temperature grade 2: –40℃ to +105℃ ambient operating temperature range
Device HBM ESD classification level ±8kV
Device CDM ESD classification level C6
25-MHz to 100-MHz Input Pixel Clock Support
Programmable data payload:
10-bit Payload up to 100-MHz
12-bit Payload up to 75-MHz
Continuous low latency bidirectional control interface channel with I2C support at 400-kHz
2:1 Multiplexer to choose between two input images
Capable of receiving over 15-m coaxial or 20-m shielded twisted-pair cables
Robust Power-Over-Coaxial (PoC) operation
Receive equalizer automatically adapts for changes in cable loss
LOCK output reporting pin and @SPEED BIST diagnosis feature to validate link integrity
Single power supply at 1.8-V
ISO 10605 and IEC 61000-4-2 ESD compliant
EMI/EMC mitigation with programmable spread spectrum (SSCG) and receiver staggered outputs
Applications Of DS90UB914ATRHSRQ1
• Automotive
– Surround view systems (SVS)
– Rear and front view cameras
– Driver monitor cameras (DMS)
– Remote satellite RADAR sensors
• Security and surveillance
• Industrial machine vision
