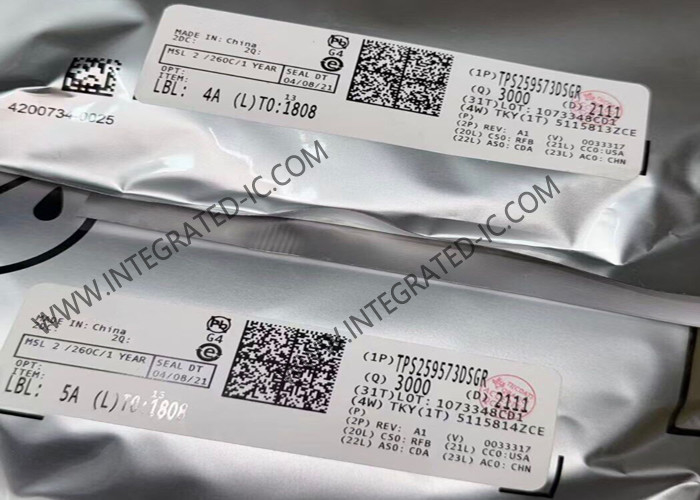

TPS259573DSGR Integrated Circuit Chip 4A Electronic Fuse WSON-8 Hot Swap Controllers

TPS259573DSGR Integrated Circuit Chip 4A Electronic Fuse WSON-8 Hot Swap Controllers​

Product Description Of TPS259573DSGR

TPS259573DSGR eFuses (integrated FET hot swap devices) is a highly integrated circuit protection and power management solution in a small package. TPS259573DSGR provide multiple protection modes using very few external components and are a robust defense against overloads, short circuits, voltage surges, and excessive inrush current.

Specification Of TPS259573DSGR

Features Of TPS259573DSGR

Wide Input Voltage Range: 2.7 V to 18 V
– 20 V Absolute Maximum
– 3 V to 18 V for TPS2595x5 Version
Low On-Resistance: RON = 34 mΩ (Typical)
Fast Overvoltage Protection Clamp (3.8-V, 5.7-V, and 13.7-V options) With a Response Time of 5µs (Typical)
Active Low Enable Input With Adjustable Overvoltage Lockout (OVLO)
Adjustable Current Limit With Load Current Monitor Output (ILM)
– Current Range: 0.5 A to 4 A
– Current Limit Accuracy: ±7.5%
Adjustable Output Slew Rate Control (dVdt)
Over Temperature Protection (OTP)
Fault Indication Pin (FLT )
UL 2367 Recognition – File No. E169910
– RILM >= 487 Ω (4.42 A maximum)

Applications Of TPS259573DSGR

Hot-Swap, Hot-Plug
Adapter Powered Systems
Multi-function Printers
SSDs and HDDs
Industrial Systems
White Goods
Set-Top Box
Digital TV
