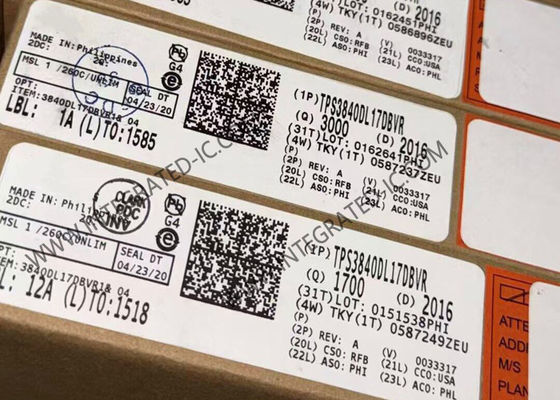

TPS3840DL17DBVR Integrated Circuit Chip High Input Voltage Supervisor With MR And Programmable Delay

TPS3840DL17DBVR Integrated Circuit Chip High Input Voltage Supervisor With MR And Programmable Delay

Product Description Of TPS3840DL17DBVR
TPS3840DL17DBVR Wide Vin allows monitoring 9V rails or batteries without external components and 24V rails with external resistors. Nano-Iq extends battery life for low power applications and minimizes current consumption when using external resistors. Fast start-up delay allows the detection of a voltage fault before the rest of the system powers up providing maximum safety in hazardous start-up fault conditions. Low Power-on-Reset (VPOR) prevents false resets, premature enable or turn-on of next device, and proper transistor control during power-up and power-down.

Specification Of TPS3840DL17DBVR

Feature Of TPS3840DL17DBVR
Wide operating voltage: 1.5 V to 10 V
Nano supply current: 300 nA (Typ), 700 nA (Max)
Fixed threshold voltage (VIT-)
Threshold from 1.6 V to 4.9 V in 0.1-V steps
High accuracy: 1% (Typ), 1.5% (Max)
Built-in hysteresis (VIT+)
1.6 V < VIT- ≤ 3.0 V = 100 mV (Typical)
3.1 V ≤ VIT- < 4.9 V = 200 mV (Typical)
Start-up delay (tSTRT): 220 µs (Typ), 350 µs (Max)
Programmable reset time delay (tD):
50 µs (no capacitor) to 6.2 s (10-µF)
Active-low manual reset (MR)
Three output topologies:
TPS3840DL: open-drain, active-low (RESET), requires pull-up resistor
TPS3840PL: push-pull, active-low (RESET)
TPS3840PH: push-pull, active-high (RESET)
Wide temperature range: –40°C to +125°C
Package: SOT23-5 (DBV)

Applications Of TPS3840DL17DBVR
Grid infrastructure: circuit breaker, smart meter, other monitoring and protection equipment
Factory automation: field transmitter, PLC.
Building automation: fire safety, smoke detector, and HVAC
Electronic point of sale
Portable, battery-powered systems
