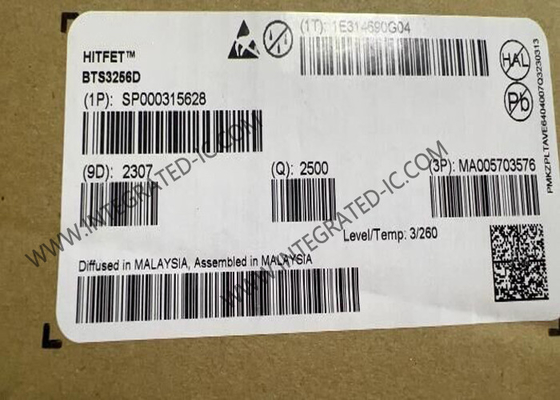

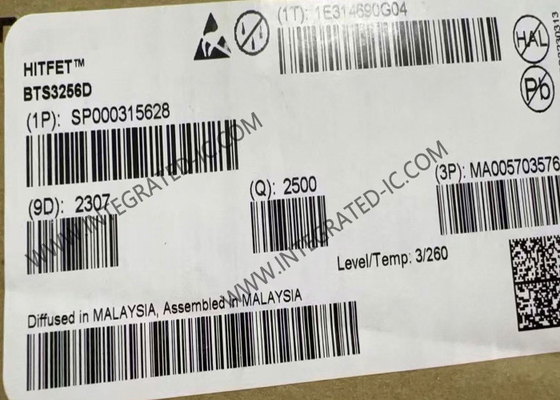

BTS3256D Integrated Circuit Chip Automotive Smart Low-Side Power Switch IC TO-252-5 Package
BTS3256D Integrated Circuit Chip Automotive Smart Low-Side Power Switch IC TO-252-5 Package
Description
Part Number:
BTS3256D
Number Of Outputs::
1 Output
Output Current::
7.5 A
Current Limit::
42 A
On Resistance - Max::
10 MOhms
On Time - Max::
22 Us
BTS3256D Integrated Circuit Chip Automotive Smart Low-Side Power Switch IC TO-252-5 Package
Product Description Of BTS3256D
BTS3256D is a single channel low-side power switch in PG-TO-252-5-11 package providing embedded protective functions
This HITFET™ is designed for automotive and industrial applications with outstanding protection and control features. The power transistor is a N-channel vertical power MOSFET. The device is controlled by a chip in Smart Power Technology.
Specification Of BTS3256D
Low Side
1 Output
7.5 A
42 A
10 mOhms
22 us
24 us
5.5 V to 30 V
- 40 C
+ 150 C
Supply Voltage - Max:
30 V
Supply Voltage - Min:
5.5 V
Unit Weight:
330 mg
Feature Of BTS3256D
Slew rate control by dedicated pin enabling EMC optimized switching or PWM operation
Max. switching Frequency 12kHz
Clear detection of digital fault signal also during fast PWM operation due to restart delay time
Thermal and overload protection with time controlled auto restart behavior
Time and Power limited active current limitation
Minimum RDSDS(on) achieved with 3.3V or 5V logic input
Electrostatic discharge protection (ESD)
Very low leakage current
Green Product (RoHS compliant)
AEC (Automotive Electronics Council) Stress Test Qualification
Applications Of BTS3256D
Solenoid driver (Powertrain)
Body controller (interior light dimming)
Active suspension control
Automotive body control module (BCM)
Secondary power distribution system
