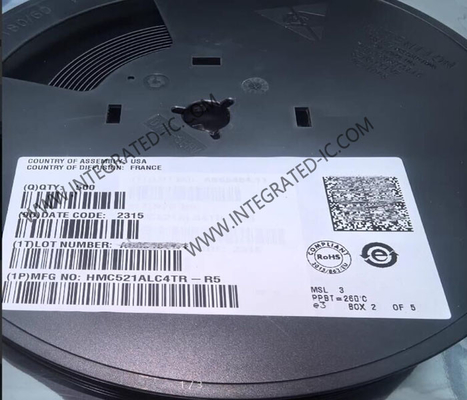

HMC521ALC4TR Wireless Communication Module 8.5GHz To 13.5GHz GaAs MMIC I/Q Mixer

HMC521ALC4TR Wireless Communication Module 8.5GHz To 13.5GHz GaAs MMIC I/Q Mixer

Product Description Of HMC521ALC4TR
HMC521ALC4TR is a compact, gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), inphase quadrature (I/Q) mixer in a RoHS compliant, 24-terminal ceramic leadless chip carrier (LCC) package. This device can be used as either an image reject mixer or a single sideband upconverter. The mixer uses two standard, double balanced mixer cells and a 90° hybrid coupler fabricated in a GaAs, metal semiconductor field effect transistor (MESFET) process. This device is a smaller alternative to hybrid style image reject mixers and single sideband upconverter assemblies. The HMC521ALC4TR eliminates the need for wire bonding, allowing use of surface-mount manufacturing techniques.

Specifications Of HMC521ALC4TR

Feature Of HMC521ALC4TR
Downconverter, 8.5 GHz to 13.5 GHz
Conversion loss: 9 dB typical
Image rejection: 27.5 dBc typical
LO to RF isolation: 39 dB typical
Input IP3: 16 dBm typical
Wide IF Bandwidth: dc to 3.5 GHz
3.9 mm × 3.9 mm, 24-terminal LCC package: 16 mm²

Applications Of HMC521ALC4TR
Microwave and very small aperture terminal (VSAT) radios
Test equipment
Military electronic warfare (EW); electronic countermeasure (ECM); and command, control, communications, and intelligence (C3I)
