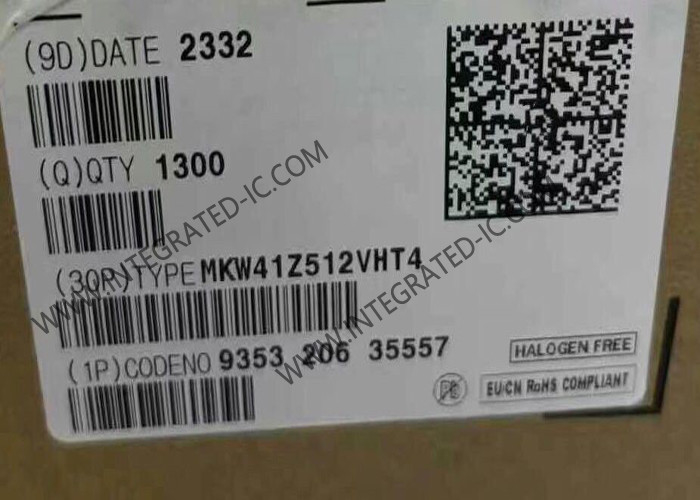

MKW41Z512VHT4 Wireless Communication Module 2.4GHz Generic FSK System On Chip QFN-48
MKW41Z512VHT4 Wireless Communication Module 2.4GHz Generic FSK System On Chip QFN-48
Description
Part Number:
MKW41Z512VHT4
Series:
Kinetis KW41Z
Frequency:
2.4GHz
Data Rate (Max):
1Mbps
Power - Output:
3.5dBm
Memory Size:
512kB Flash, 128kB RAM
MKW41Z512VHT4 Wireless Communication Module 2.4GHz Generic FSK System On Chip QFN-48
Product Description Of MKW41Z512VHT4
MKW41Z512VHT4 is a BT® Low Energy, IEEE® Standard 802.15.4, Generic FSK System on a Chip (SoC).
MKW41Z512VHT4 is an ultra low-power, highly integrated single-chip device that enables BT low energy (BLE), Generic FSK (at 250, 500 and 1000 kbps) or IEEE Standard 802.15.4 RF connectivity for portable, extremely low-power embedded systems.
Specification Of MKW41Z512VHT4
Part Number:
MKW41Z512VHT4
Product Category:
RF System on a Chip - SoC
BLE 4.2, LR-WPAN
ARM Cortex M0+
2.4 GHz
1 Mbps
3.5 dBm
- 95 dBm
900 mV
4.2 V
6.8 mA
6.1 mA
512 kB
- 40 ℃
+ 105 ℃
QFN-48
ADC Resolution:
16 bit
Data Bus Width:
32 bit
Data RAM Size:
128 kB
Data RAM Type:
SRAM
Interface Type:
I2C, SPI, UART
Maximum Clock Frequency:
48 MHz
Mounting Style:
SMD/SMT
Features Of MKW41Z512VHT4
Multi-Standard Radio
• 2.4 GHz BT Low Energy ver. 4.2 compliant supporting up to 2 simultaneous hardware connections
• IEEE Std. 802.15.4 compliant with dual-PAN support
• Generic FSK modulation
• Data Rate: 250, 500 and 1000 kbps
• Modulations: GFSK BT = 0.3, 0.5, 0.7; FSK/MSK
• Modulation Index: 0.32, 0.5, or 0.7
• Typical Receiver Sensitivity (BLE) = -95 dBm
• Typical Receiver Sensitivity (802.15.4) = -100 dBm
• Typical Receiver Sensitivity (250 kbps GFSK-BT=0.5, h=0.5) = -100 dBm
• Prog Transmitter Output Power: -30 dBm to 3.5 dBm
• Low external component counts for low cost application
• On-chip balun with single ended bidirectional RF port
Applications Of MKW41Z512VHT4
Applications include portable health care devices, wearable sports and fitness devices, AV remote controls, computer keyboards and mice, gaming controllers, access control, security systems, smart energy and home area networks.
