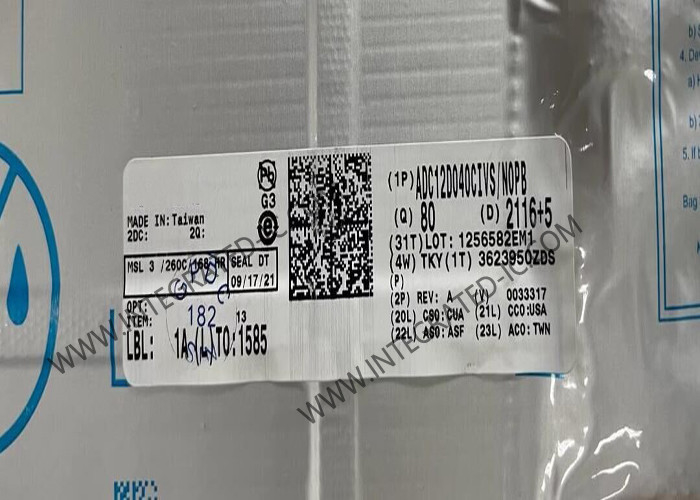

ADC12D040CIVS Integrated Circuit Chip 12-Bit Analog To Digital Converter TQFP-64

ADC12D040CIVS Integrated Circuit Chip 12-Bit Analog To Digital Converter TQFP-64​

Product Description Of ADC12D040CIVS

ADC12D040CIVS is a dual, low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 40 Megasamples per second (Msps), minimum. ADC12D040CIVS converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance.

Specification Of ADC12D040CIVS

Features Of ADC12D040CIVS

Binary or 2’s Complement Output Format
Single Supply Operation
Internal Sample-and-Hold
Outputs 2.4V to 5V Compatible
Power Down Mode
Pin-Compatible with ADC12DL066
Internal/External Reference

Key Specifications Of ADC12D040CIVS
SNR (fIN = 10 MHz): 68 dB (typ)
ENOB (fIN = 10 MHz): 10.9 bits (typ)
SFDR (fIN = 10 MHz): 80 dB (typ)
Data Latency: 6 Clock Cycles
Supply Voltage: +5V ±5%
Power Consumption, Operating
- (Operating): 600 mW (typ)
- (Power Down Mode): 75 mW (typ)

Applications Of ADC12D040CIVS
Ultrasound and Imaging
Instrumentation
Communications Receivers
Sonar/Radar
xDSL
Cable Modems
