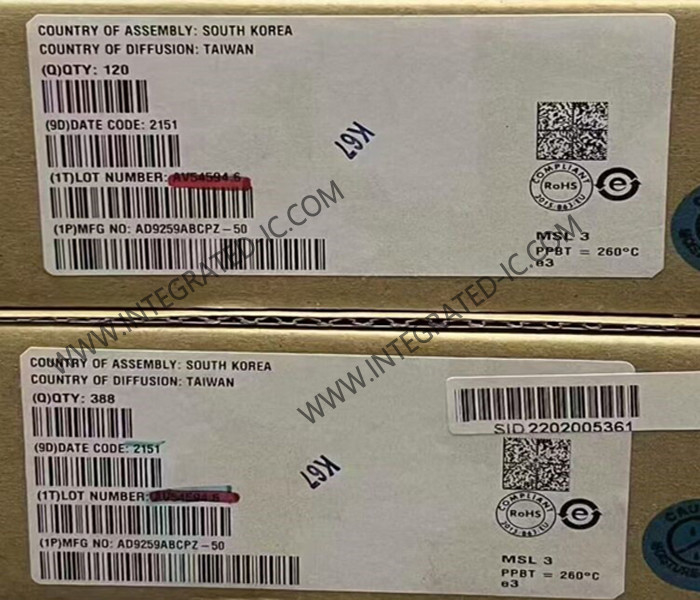

AD9259ABCPZ-50 Integrated Circuit Chip 14-Bit ADC 50MSPS Analog To Digital Converter

AD9259ABCPZ-50 Integrated Circuit Chip 14-Bit ADC 50MSPS Analog To Digital Converter​

Product Description Of AD9259ABCPZ-50

AD9259ABCPZ-50 is a quad, 14-bit, 50 MSPS analog-to-digital converter (ADC) with an on-chip sample-and-hold circuit designed for low cost, low power, small size, and ease of use. The AD9259ABCPZ-50 operates at a conversion rate of up to 50 MSPS and is optimized for outstanding dynamic performance and low power in applications where a small package size is critical.

Specification Of AD9259ABCPZ-50

Features Of AD9259ABCPZ-50

4 ADCs integrated into 1 package
98 mW ADC power per channel at 50 MSPS
SNR = 73 dB (to Nyquist)
ENOB = 12 bits
SFDR = 84 dBc (to Nyquist)
Excellent linearity
- DNL = ±0.5 LSB (typical)
- INL = ±1.5 LSB (typical)
Serial LVDS (ANSI-644, default)
- Low power, reduced signal option (similar to IEEE 1596.3)
Data and frame clock outputs
315 MHz full-power analog bandwidth
2 V p-p input voltage range
1.8 V supply operation
Serial port control
- Full-chip and individual-channel power-down modes
- Flexible bit orientation
- Built-in and custom digital test pattern generation
- Programmable clock and data alignment
- Programmable output resolution
- Standby mode

Applications Of AD9259ABCPZ-50
Medical imaging and nondestructive ultrasound
Portable ultrasound and digital beam-forming systems
Quadrature radio receivers
Diversity radio receivers
Tape drives
Optical networking
Test equipment
