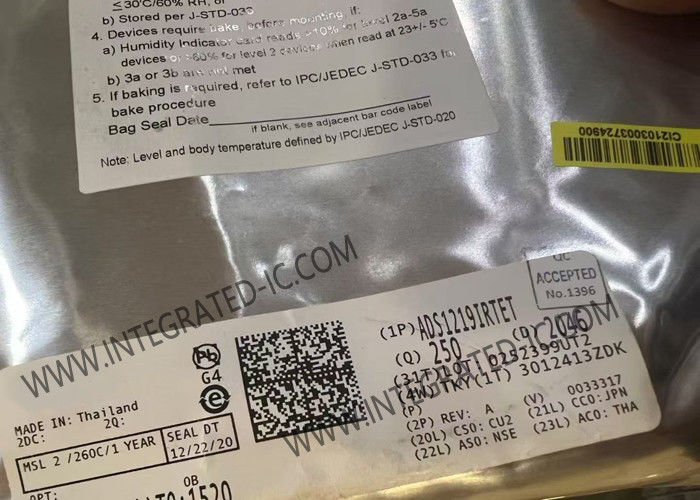

ADS1219IRTET Integrated Circuit Chip Analog To Digital Converter​ 24-Bit Delta-Sigma ADC

ADS1219IRTET Integrated Circuit Chip Analog To Digital Converter​ 24-Bit Delta-Sigma ADC​

Product Description Of ADS1219IRTET

ADS1219IRTET is a precision, 24-bit, analog-to-digital converter (ADC) that includes all features necessary to implement the most common system monitoring functions, such as supply voltage, current, and temperature monitoring.
ADS1219IRTET features two differential or four single-ended inputs through a flexible input multiplexer (MUX), rail-to-rail input buffers, a programmable gain stage, a voltage reference, and an oscillator.

Specification Of ADS1219IRTET

Features Of ADS1219IRTET

Easy to Use With Only One Register to Program
Current Consumption as Low as 315 µA (typ)
Wide Supply Range: 2.3 V to 5.5 V
Rail-to-Rail Input Buffers to Achieve High Input Impedance
Programmable Gains: 1 and 4
Programmable Data Rates: Up to 1 kSPS
Up to 20 Bits Effective Resolution
Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS With Single-Cycle Settling Digital Filter
Two Differential or Four Single-Ended Inputs
Internal 2.048-V Reference: 5 ppm/°C (typ) Drift
Internal 2% Accurate Oscillator
I2C-Compatible Interface
Supported I2C Bus Speed Modes: Standard-Mode, Fast-Mode, Fast-Mode Plus
16 Pin-Configurable I2C Addresses
Package: 3.0-mm × 3.0-mm × 0.75-mm WQFN

Applications Of ADS1219IRTET
Battery Test Equipment
Gas Detectors
Heat Meters
Optical Modules
Wearable Fitness and Activity Trackers

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
