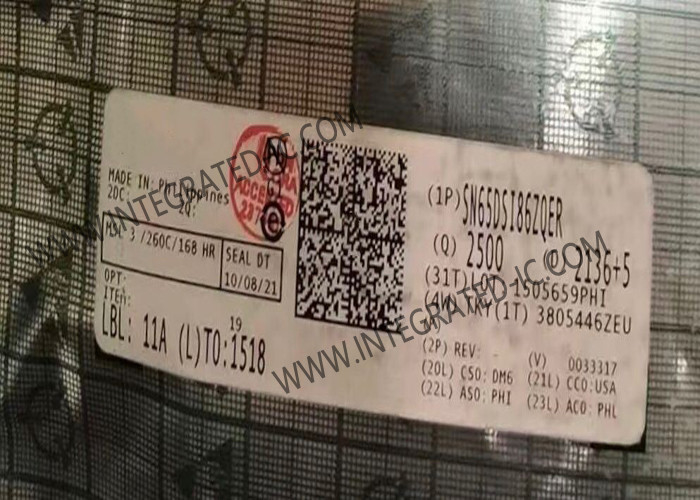

SN65DSI86ZQER Integrated Circuit Chip Dual-Channel DSI To Embedded DisplayPort Bridge

SN65DSI86ZQER Integrated Circuit Chip Dual-Channel DSI To Embedded DisplayPort Bridge

Product Description Of SN65DSI86ZQER
SN65DSI86ZQER DSI to embedded DisplayPort (eDP) bridge features a dual-channel MIPI D-PHY receiver front-end configuration with four lanes per channel operating at 1 .5 Gbps per lane and a maximum input bandwidth of 12 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data stream to a DisplayPort with up to four lanes at either 1.62 Gbps, 2.16 Gbps, 2.43 Gbps, 2.7 Gbps, 3.24 Gbps, 4.32 Gbps, or 5.4 Gbps.
SN65DSI86ZQER is well suited for WQXGA at 60 frames per second, as well as 3D graphics at 4K and true HD (1920 x 1080) resolutions at an equivalent 120 fps with up to 24 bpp. Partial line buffering is implemented to accommodate the data stream mismatch between the DSI and DisplayPort interfaces.

Specifications Of SN65DSI86ZQER

Features Of SN65DSI86ZQER
Embedded DisplayPort™ ( eDP™) 1.4 compliant supporting 1, 2, or 4 lanes at 1.62 Gbps (RBR), 2.16 Gbps, 2.43 Gbps, 2.7 Gbps (HBR), 3.24 Gbps, 4.32 Gbps, or 5.4 Gbps (HBR2).
Implements MIPI® D-PHY version 1.1 physical layer front-end and display serial interface (DSI) version 1.02.00
Dual-channel DSI receiver configurable for one, two, three, or four D-PHY data lanes per channel operating up to 1.5 Gbps per lane
Supports 18 bpp and 24 bpp DSI video packets with RGB666 and RGB888 formats
Suitable for 60 fps 4K 4096 × 2304 resolution at 18bpp color, and WUXGA 1920 × 1200 resolution with 3D graphics at 60 fps (120 fps equivalent)
MIPI front-end configurable for single-channel or dual-channel DSI configuration
Supports dual-channel DSI odd, even and left, right operating modes
1.2-V main VCC power supply and 1.8-V supply for digital I/Os
Low-power features include panel refresh and MIPI ultralow power state (ULPS) support
DisplayPort lane polarity and assignment configurable.
Supports 12-MHz, 19.2-MHz, 26-MHz, 27-MHz, and 38.4-MHz frequencies through external reference clock (REFCLK)
ESD rating ±4 kV (HBM)
Packaged in 64ball 5-mm x 5-mm nFBGA (ZXH)
I2C configurable
Temperature range: –40°C to +85°C

Applications Of SN65DSI86ZQER
PC & notebooks
Tablets
Retail automation & payment
Test and measurement
Factory automation and control
