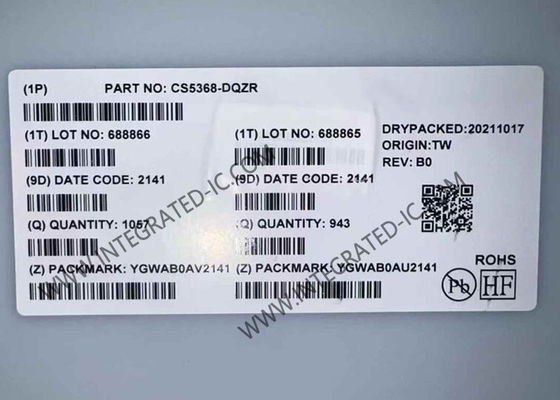

Product Description Of CS5368-DQZR
CS5368-DQZR is a complete 8-channel analog-to-digital converter for digital audio systems. It performs sampling, analog-to-digital conversion, and anti-alias filtering, generating 24-bit values for all 8-channel inputs in serial form at sample rates up to 216 kHz per channel.
CS5368-DQZR uses a 5th-order, multi-bit delta sigma modulator followed by low latency digital filtering and decimation, which removes the need for an external anti-aliasing filter. The ADC uses a differential input architecture which provides excellent noise rejection.
Specifications Of CS5368-DQZR
192 kHz
24 bit
Serial
LQFP-48
8 Input
4.75 V
5.25 V
- 40 C
+ 85 C
Height:
1.3 mm
Length:
7 mm
Width:
7 mm
Unit Weight:
181.700 mg
Features Of CS5368-DQZR
Advanced Multi-bit Delta-Sigma Architecture
24-Bit Conversion
114 dB Dynamic Range
-105 dB THD+N
Supports Audio Sample Rates up to 216 kHz
Selectable Audio Interface Formats
L eft-Justified, I2S, TDM
8-Channel TDM Interface Formats
Low Latency Digital Filter
Less than 680 mW Power Consumption
On-Chip Oscillator Driver
Operation as System Clock Master or Slave
Auto-Detect Speed in Slave Mode
Differential Analog Architecture
Separate 1.8 V to 5 V Logic Supplies for Control and Serial Ports
High-Pass Filter for DC Offset Calibration
Overflow Detection
Footprint Compatible with the 4-Channel CS5364 and 6-Channel CS5366
Additional Control Port Features Of CS5368-DQZR
Supports I2C or SPITM Control Interface perspecifications on page 17 and page 18
Individual Channel HPF Disable
Overflow Detection for Individual Channels
Mute Control for Individual Channels
Independent Power-Down Control per Channel Pair
