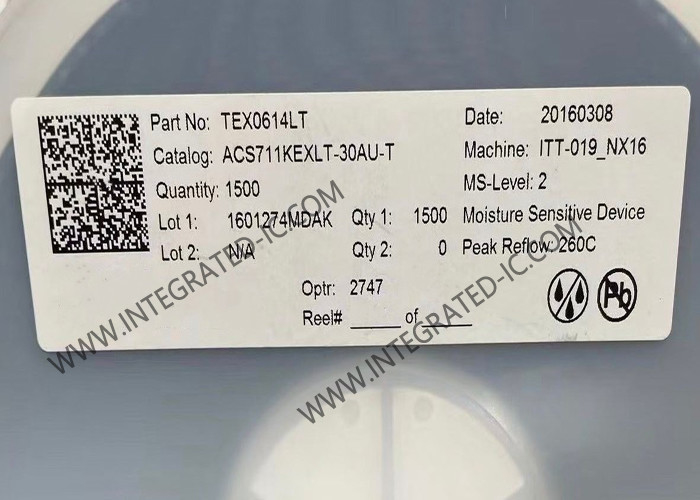

ACS711KEXLT-30AU Sensor IC 30A Hall Effect Linear Current Sensor QFN12

ACS711KEXLT-30AU Sensor IC 30A Hall Effect Linear Current Sensor QFN12

Product Description Of ACS711KEXLT-30AU

ACS711KEXLT-30AU is Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications.

ACS711KEXLT-30AU consists of a linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer.

Specification Of ACS711KEXLT-30AU

Features Of ACS711KEXLT-30AU

No external sense resistor required; single package solution
Reduced Power Loss: 0.6 mΩ internal conductor resistance
Economical low- and high-side current sensing
Output voltage proportional to AC or DC currents
- ±15.5 A and ±31 A full scale sensing ranges
Overcurrent FAULT trips and latches at 100% of full-scale current
Low-noise analog signal path
100 kHz bandwidth
Small footprint, low-profile SOIC8 and QFN packages
3.0 to 5.5 V, single supply operation
Integrated electrostatic shield for output stability
Factory-trimmed for accuracy
Extremely stable output offset voltage
Zero magnetic hysteresis
Ratiometric output from supply voltage

Applications Of ACS711KEXLT-30AU
Load Management in Solar Inverters
Battery and Charging in Personal Mobility
Short Circuit and Overpower Detection in Audio
Motor and Pump Control in White Goods
General Power Supply Monitoring
