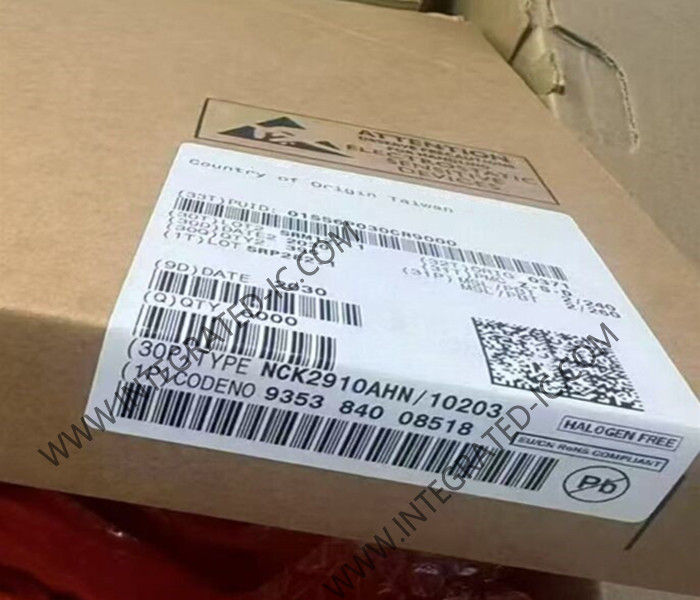

NCK2910AHN Wireless Communication Module RF Receiver With SPI Interface HVQFN48

NCK2910AHN Wireless Communication Module RF Receiver With SPI Interface HVQFN48​

Product Description Of NCK2910AHN

NCK2910AHN is RF Receiver and Transceiver with Ready-to-Use Firmware Stack.

Specification Of NCK2910AHN

CH BW: 31 ch. filter BW settings (11.25 … 360 kHz)

RF frequency range: 310MHz to 915MHz (ISM-Bands)
Blocking:
- FSK, 45 kHz BW, +/-2 MHz 70dB
- FSK, 45 kHz BW, +/-10 MHz 83dB
Selectivity FSK, 200 kHz BW, +/-250 kHz 57 dB
Max RF input: 20dBm (no damage) / 5dBm (functional)
Data rate Max.: 215kbit/s (ASK / FSK) NRZ
Supply Current: Single RF input 10.9 mA
Temperature: -40°C to +125°C
ESD: 2kV
System Noise Fig @434MHz: 5dB (System)
Image rejection: 60dB
RSSI Dynamic Range @45kHz BW: 114dB

Features Of NCK2910AHN

Analogue
• Two single ended RF inputs available
• Attenuators can reduce RF signal before LNA
• LNA has fixed gain and NF ~ 3 (receiver NF ~ 5dB)
• Attenuators after LNA can reduce signal before mixer /ADC
• IQ mixer used to generate baseband (IF) data for I & Q
• IF amplifiers amplify signals and feed them to ADC
• ADC (70dB SNR) converts to digital
• Further mixing and filtering and signal recovery in digital
Digital
• Usable IF bandwidth -385kHz to -25kHz and 25kHz to 385kHz
• IQ mismatch compensation
• AGC compensation
• Configurable channel filter (11.25kHz to 360kHz)
• RSSI and offset frequency detector/measurement
• ASK, FSK demodulation
• Manchester and NRZ operation with data-rate tolerance of up to +/-12%
• Signal monitors (signal property checks)
• Data processing unit with DMA interface
• Digital AFC to maximize sensitivity for applications with large frequency offsets (e.g.TPMS)
