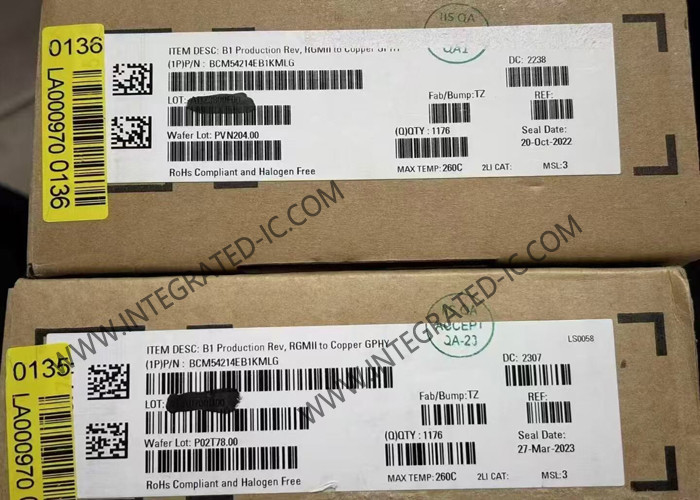

BCM54214EB1KMLG Ethernet IC Single Port RGMII Gigabit Ethernet Transceiver QFN68

BCM54214EB1KMLG Ethernet IC Single Port RGMII Gigabit Ethernet Transceiver QFN68​

Product Description Of BCM54214EB1KMLG

BCM54214EB1KMLG is a triple-speed 1000BASE-T/100BASE-TX/10BASE-T Gigabit Ethernet (GbE) transceiver integrated into a single monolithic CMOS chip.
BCM54214EB1KMLG performs all physical-layer functions for 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet on standard category 5 UTP cable. 10BASE-T can also run on standard category 3, 4, and 5 UTP.
BCM54214EB1KMLG is a highly integrated solution combining digital adaptive equalizers, ADCs, phase-locked loops, line drivers, encoders, decoders, echo cancellers, crosstalk cancellers, and all required support circuitry.
BCM54214EB1KMLG features CableChecker™ diagnostics, which detects common cable problems including shorts, opens, and cable length.

Features Of BCM54214EB1KMLG

• Single-chip integrated triple-speed Ethernet transceiver
• 1000BASE-T IEEE 802.3ab
• 100BASE-TX IEEE 802.3u
• 10BASE-T IEEE 802.3
• 100BASE-EFX
• Supports RGMII MAC interfaces
• Supports GMII/MII MAC interfaces
• Synchronous Ethernet support
• Supports SOFT-RESET
• Ethernet@Wirespeed™
• Integrated voltage regulator
• Trace matched output impedance
• Lineside loopback
• Low EMI emissions
• Cable plant diagnostics
• Robust CESD tolerance
• Support for jumbo packets up to 10 KB
• Detection and correction of pair swaps
• (MDI crossover), pair skew, and pair polarity
• Advanced power management
• IEEE 1149.1 (JTAG) boundary scan
• IEEE 802.3az-compliant support – Support for native EEE MACs – Support for legacy non-EEE MAC using AutogrEEEn® mode – AutogrEEEn+
• Super-isolate mode
• Supports Passive Signal Detector
• Supports Wake-on-LAN (WOL)
• IEEE Standard 1588-2008 (version 2)-compliant
• Supports Y.1731
• 68-pin QFN packages

Applications Of BCM54214EB1KMLG

• GbE switches and uplinks
• Management Port
• Industrial Automation
• Customer Premise Equipment (CPE)
• Video Surveillance
• LED Controller
