TPS53515RVER Integrated Circuit Chip 12A Output Current Buck Converter with 1MHz Switching Frequency and D-CAP3 Control Mode

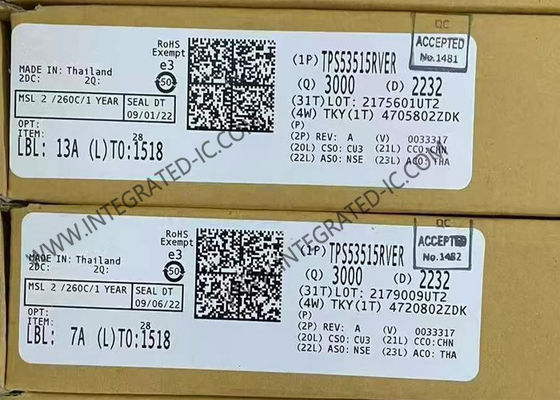

Large Image : TPS53515RVER Integrated Circuit Chip 12A Output Current Buck Converter with 1MHz Switching Frequency and D-CAP3 Control Mode

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS53515RVER

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VQFN-28
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS53515RVER Integrated Circuit Chip 12A Output Current Buck Converter with 1MHz Switching Frequency and D-CAP3 Control Mode

Description

Part Number:	TPS53515RVER	Function:	Step-Down
Voltage - Output (Max):	5.5V	Current - Output:	12A
Frequency - Switching:	200kHz ~ 1MHz	Operating Temperature:	-40°C ~ 85°C (TA)
Highlight:	12A Output Current Buck Converter , 1MHz Switching Frequency Integrated Circuit Chip , D-CAP3 Control Mode SWIFT Regulator

TPS53515 Integrated Circuit Chip 12A Single Synchronous SWIFT Buck Converter VQFN28

Product Overview Of TPS53515

TPS53515 is a small-sized, synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device offers ease-of-use and low external-component count for space-conscious power systems.

Specifications Of TPS53515

Part Number	TPS53515RVER
Mounting Style	SMD/SMT
Package / Case	VQFN-CLIP-28
Topology	Buck
Output Voltage	600 mV to 5.5 V
Output Current	12 A
Number of Outputs	1 Output
Input Voltage - Min	1.5 V
Input Voltage - Max	18 V
Quiescent Current	850 uA
Switching Frequency	1 MHz
Minimum Operating Temperature	-40 ℃
Maximum Operating Temperature	+85 ℃
Input Voltage	1.5 V to 18 V
Product Type	Switching Voltage Regulators

Key Features Of TPS53515

Integrated 13.8mΩ and 5.9mΩ MOSFETs With 12A Continuous Output Current
Supports All Ceramic Output Capacitors
Reference Voltage 600 mV ±0.5% Tolerance
Output Voltage Range: 0.6 V to 5.5 V
D-CAP3™ Control Mode With Fast Load-Step Response
Auto-Skipping Eco-mode™ for High Light-Load Efficiency
FCCM for Tight Output Ripple and Voltage Requirements
Eight Selectable Frequency Settings from 250 kHz to 1 MHz
Precharged Startup Capability
Built-in Output Discharge Circuit
Open-Drain Power-Good Output
3.5 mm × 4.5 mm, 28-Pin, VQFN-CLIP Package

Applications Of TPS53515

Server and Cloud-Computing POLs
Broadband, Networking, and Optical Communications Infrastructure
I/O Supplies
Supported at the WEBENCH® Design Center

Related Components In Stock

Part Number	Package
SHT31-DIS-B2.5kS	8-VFDFN
SHT31-DIS-F2.5kS	8-VFDFN
SI7021-A20-YM1	6-WDFN
SHT30-DIS-B2.5KS	8-VFDFN
ISO6720FBDR	8-SOIC
ISO1I811TXUMA1	48-TSSOP
MAX14435FAWE	16-SOIC
LM5165YDRCR	10-VSON
LMR16006YQDDCRQ1	SOT-23-6
LMQ66420MC5RXBRQ1	14-VQFN
TPS62850140QDYCRQ1	SOT-583
MAX18002AWT	6-WFBGA
MAX25206ATPC/VY	20-WFQFN
LM5158QRTERQ1	16-WQFN
LM5012QDDARQ1	8-PowerSOIC
MAX20430ATIP/VY	28-WFQFN
LP8758A2E3YFFR	35-UFBGA
MAX17662BATE	16-TQFN
LTM4657EY	49-BGA
LTC7151SEV	28-VFQFN
MAXM17537ALY	SiP-29
TPSM5601R5HSRDAR	B3QFN-15
LTM8050MPY	BGA-70
LTM4633IY	BGA-144
MAX17574ATG	TQFN-24
ADUM5028-3BRIZ	SOIC-8
LTM4653IY	BGA-77
LTM4630AEY	BGA-144
LTM4668EY	BGA-49
LTC3376EY	BGA-64

Product Tags

TPS53515RVER, TPS53515RVE, TPS53515RV, TPS53515R, TPS53515

Frequently Asked Questions

Are your products original?

Yes, all products are original, new original import is our purpose.

Which Certificates do you have?

We are ISO 9001:2015 Certified Company and member of ERAI.

Can you support small quantity order or sample? Is the sample free?

Yes, we support sample order and small order. Sample cost is different according to your order or project.

How to ship my order? Is it safe?

We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

What about the lead time?

We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
