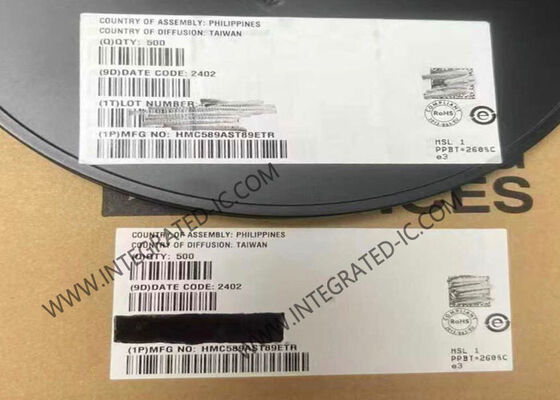

HMC589AST89E Integrated Circuit Chip InGaP HBT Gain Block MMIC Amplifiers SOT-89-3
The HMC589AST89E is an InGaP HBT Gain Block MMIC SMT amplifier covering DC to 4 GHz, packaged in an industry standard SOT89E. This versatile amplifier serves as a cascadable 50 Ohm RF or IF gain stage, as well as a LO or PA driver with up to +19 dBm P1dB output power. Ideal for cellular/3G, FWA, CATV, microwave radio, and test equipment applications, it delivers 20 dB gain and +33 dBm output IP3 at 1 GHz while requiring only 82 mA from a single positive supply. The HMC589AST89E InGaP HBT gain block provides excellent output power and gain stability over temperature.
Technical Specifications
| Parameter |
Value |
| Frequency |
0Hz ~ 4GHz |
| P1dB |
17.5dBm |
| Gain |
15dB |
| Noise Figure |
4.5dB |
| RF Type |
WLAN |
| Voltage - Supply |
5V |
| Current - Supply |
82mA |
Key Features
- P1dB Output Power: +21 dBm
- Gain: 21 dB
- Output IP3: +33 dBm
- Single Supply: +5V
- Industry Standard SOT89E Package
Applications
- Cellular / PCS / 3G
- Fixed Wireless & WLAN
- CATV, Cable Modem & DBS
- Microwave Radio & Test Equipment
- IF & RF Applications
