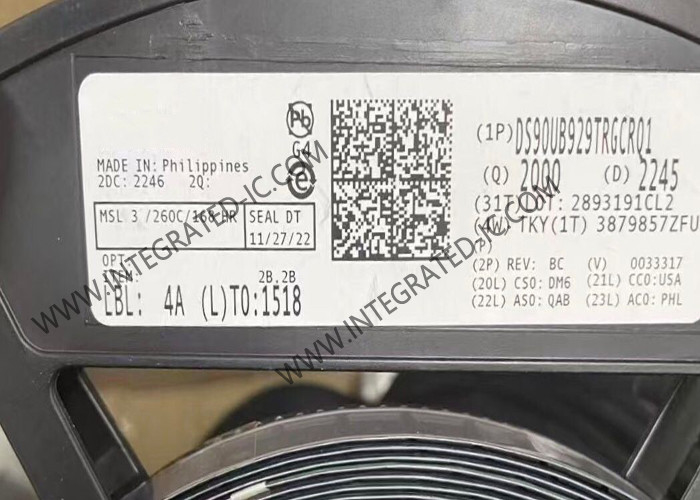

DS90UB929TRGCRQ1 Integrated Circuit Chip 5.95Gbps FPD Link III Bridge Serializer VQFN64

DS90UB929TRGCRQ1 Integrated Circuit Chip 5.95Gbps FPD Link III Bridge Serializer VQFN64​

Product Description Of DS90UB929TRGCRQ1

DS90UB929TRGCRQ1 is an HDMI to FPD-Link III bridge device which, in conjunction with the FPD-Link III DS90UB926Q-Q1/DS90UB928Q-Q1 deserializers, supplies 1-lane high-speed serial stream over cost-effective 50-Ω single-ended coaxial or 100-Ω differential shielded twisted-pair (STP) cable. It serializes an HDMI v1.4b input supporting video resolutions up to WXGA and 720p with 24-bit color depth. The DS90UB929TRGCRQ1 is also compatible with the DS90UB940-Q1/DS90UB948-Q1 deserializers.

Specification Of DS90UB929TRGCRQ1

Features Of DS90UB929TRGCRQ1

Supports TMDS clock up to 96 MHz for WXGA and 720p60 or 1080i60 resolutions with 24-bit color depth
FPD-Link III outputs
High-definition multimedia (HDMI) v1.4b inputs
HDMI-mode DisplayPort (DP++) inputs
HDMI audio extraction for up to 8 channels
Supports up to 15 meters of cable with automatic temperature and aging compensation
Monitors spread-spectrum input clock to reduce EMI
I2C (master/slave) with 1-Mbps fast-mode plus
Compatible with DS90UB926Q-Q1 and DS90UB928Q-Q1 FPD-Link III deserializers

Applications Of DS90UB929TRGCRQ1
Automotive infotainment:
– IVI head units and HMI modules
– Rear seat entertainment systems
– Digital instrument clusters
Surveillance cameras
Consumer input HDMI port
