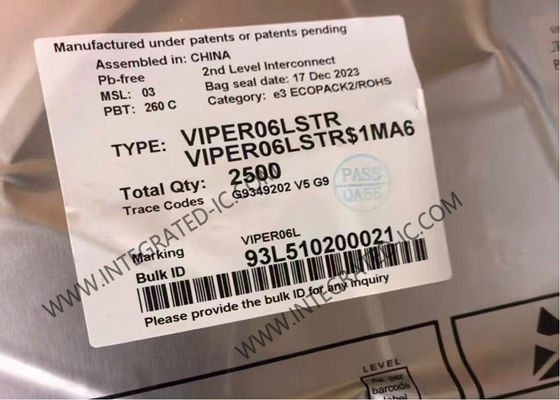

VIPER06LSTR Integrated Circuit Chip Energy Saving High Voltage Converter For Direct Feedback
Product Description Of VIPER06LSTR
VIPER06LSTR is an offline converter with an 800 V avalanche rugged power section, a PWM controller, a user-defined overcurrent limit, open-loop failure protection, hysteretic thermal protection, soft startup and safe auto-restart after any fault condition. The device is able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. Advanced frequency jittering reduces EMI filter cost. Burst mode operation and the device s very low power consumption both help to meet the standards set by energy-saving regulations.
Product Attributes Of VIPER06LSTR
|
Output Isolation
|
|
|
Internal Switch(s)
|
|
|
Voltage - Breakdown
|
|
|
Topology
|
|
|
Voltage - Start Up
|
|
|
Voltage - Supply (Vcc/Vdd)
|
|
|
Duty Cycle
|
|
|
Frequency - Switching
|
|
|
Power (Watts)
|
|
|
Fault Protection
|
Current Limiting, Open Loop, Over Temperature
|
|
Operating Temperature
|
|
Features Of VIPER06LSTR
800 V avalanche rugged power section
PWM operation with frequency jttering for low EMI
No need for an auxiliary winding in low-power applications
Standby power < 30 mW at 265 VAC
Limiting current with adjustable set point
On-board soft -start
Safe auto-restart after a fault condition
Hysteretic thermal shutdown
Applications Of VIPER06LSTR
Replacement of capacitive power supplies
Home appliances
Power metering
LED drivers
