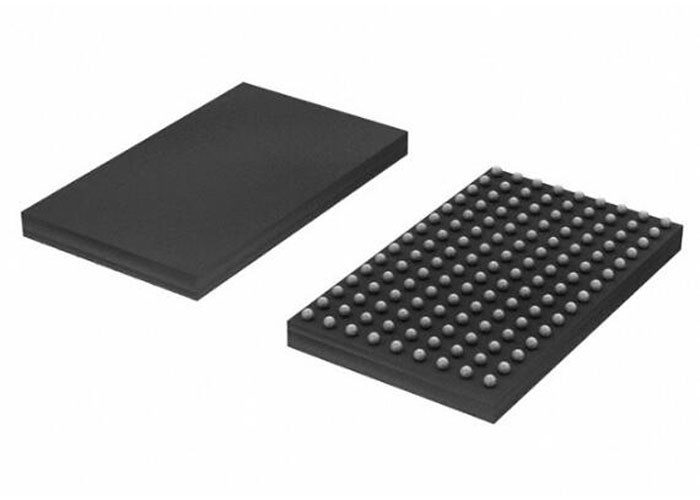

AFE5809ZCF Integrated Circuit Chip 8Channel Ultrasound Analog Front End NFBGA135
Product Description
The AFE5809ZCF is a highly integrated analog front-end (AFE) solution, which is designed for high-performance and small ultrasonic systems. The AFE5809ZCF integrates a complete time Gain control (TGC) imaging path and a continuous wave Doppler (CWD) path. It also enables users to select different power/noise combinations to optimize system performance. Therefore, the AFE5809ZCF is an ultrasonic simulation front-end solution that is not only suitable for high-end systems but also for portable systems.
Key specifications
Digit number: 14
Number of channels: 8
Power (W) : 158 mW
Voltage - Power supply, simulation: 1.7V - 1.9V, 3.15V - 3.6V, 5V
Voltage - Power supply, digital: 1.7V to 1.9V
Installation type: Surface mount type
Package/Shell: 135-BGA
Application
AFE5809ZCF is widely used in the following fields:
Medical ultrasound imaging : For high-resolution medical imaging equipment that provides clear image quality.
Non-invasive assessment device : performs well in non-invasive assessment applications that require high precision measurement.
Sonar applications : For a variety of sonar devices to enhance signal processing capabilities and system performance .
