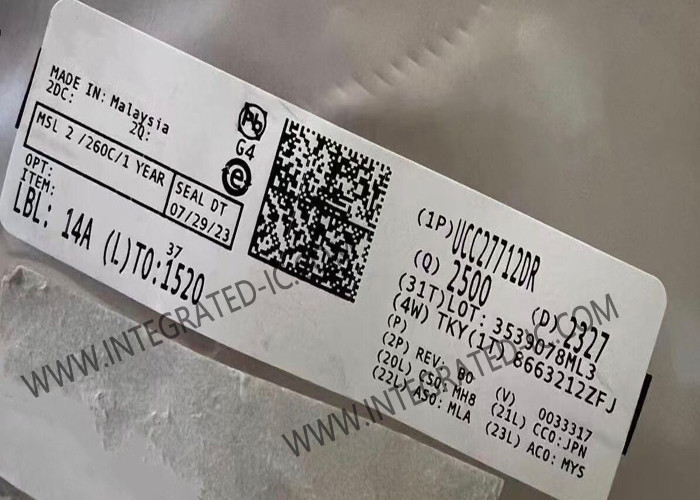

UCC27712DR Integrated Circuit Chip 620V Half Bridge Driver With Interlock
Product Description Of UCC27712DR
UCC27712DR is a 620V high-side and low-side gate driver with 1.8-A source, 2.8-A sink current, targeted to drive power MOSFETs or IGBTs.
Product Attributes Of UCC27712DR
|
Driven Configuration
|
|
|
Channel Type
|
|
|
Number of Drivers
|
|
|
Gate Type
|
IGBT, MOSFET (N-Channel, P-Channel)
|
|
Voltage - Supply
|
|
|
Logic Voltage - VIL, VIH
|
|
|
Current - Peak Output (Source, Sink)
|
|
|
High Side Voltage - Max (Bootstrap)
|
|
|
Rise / Fall Time (Typ)
|
|
|
Operating Temperature
|
|
Features Of UCC27712DR
High-side and low-side configuration
Dual inputs with output interlock and 150-ns deadtime
Fully operational up to 620-V, 700-V absolute maximum on HB pin
10-V to 20-V VDD recommended range
Peak output current 2.8-A sink, 1.8-A source
dv/dt immunity of 50 V/ns
Logic operational up to –11 V on HS pin
Negative voltage tolerance on inputs of –5 V
Large negative transient safe operating area
UVLO protection for both channels
Small propagation delay (100-ns typical)
Delay matching (12-ns typical)
Floating channel designed for bootstrap operation
Low quiescent current
TTL and CMOS compatible inputs
Industry standard SOIC-8 package
All parameters specified over temperature range, –40 °C to +125 °C
Applications Of UCC27712DR
Motor drive (stepper motors, HVAC, fans, power tools, robotics, drones)
Bridge converters in offline AC/DC power supplies
High-density switch mode power supplies for server, telecom, IT and industrial infrastructures
DC-to-AC inverters
