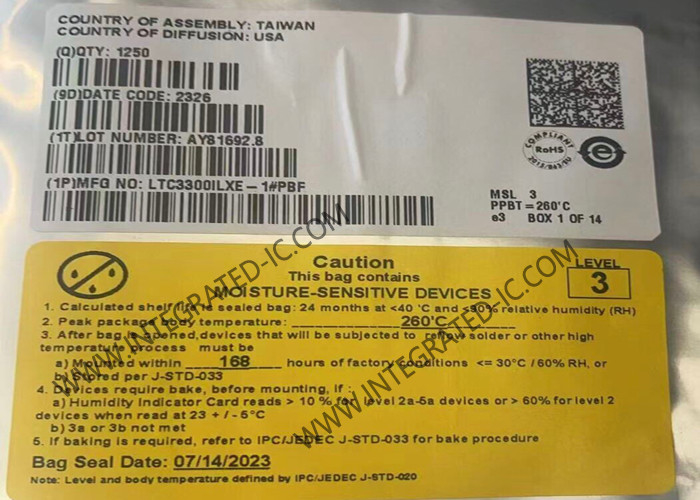

LTC3300ILXE-1 Integrated Circuit Chip High Efficiency Bidirectional Multicell Battery Balancer
Product Description Of LTC3300ILXE-1
LTC3300ILXE-1 is a fault-protected controller IC for transformer-based bidirectional active balancing of multicell battery stacks. All associated gate drive circuitry, precision current sensing, fault detection circuitry and a robust serial interface with built-in watchdog timer are integrated.
Product Attributes Of LTC3300ILXE-1
|
Function
|
|
|
Battery Chemistry
|
|
|
Number of Cells
|
|
|
Fault Protection
|
Over Temperature, Over Voltage, Short Circuit
|
|
Interface
|
|
|
Operating Temperature
|
|
|
Mounting Type
|
|
Features Of LTC3300ILXE-1
Bidirectional Synchronous Flyback Balancing of Up to 6 Li-Ion or LiFePO4 Cells in Series
Up to 10A Balancing Current (Set by Externals)
Integrates Seamlessly with the LTC680x Family of Multicell Battery Stack Monitors
Bidirectional Architecture Minimizes Balancing Time and Power Dissipation
Up to 92% Charge Transfer Efficiency
Stackable Architecture Enables >1000V Systems
Uses Simple 2-Winding Transformers
1MHz Daisy-Chainable Serial Interface with 4-Bit CRC Packet Error Checking
High Noise Margin Serial Communication
Numerous Fault Protection Features
48-Lead Exposed Pad QFN and LQFP Packages
AEC-Q100 Qualified for Automotive Applications
Applications Of LTC3300ILXE-1
Electric Vehicles/Plug-in HEVs
High Power UPS/Grid Energy Storage Systems
General Purpose Multicell Battery Stacks
