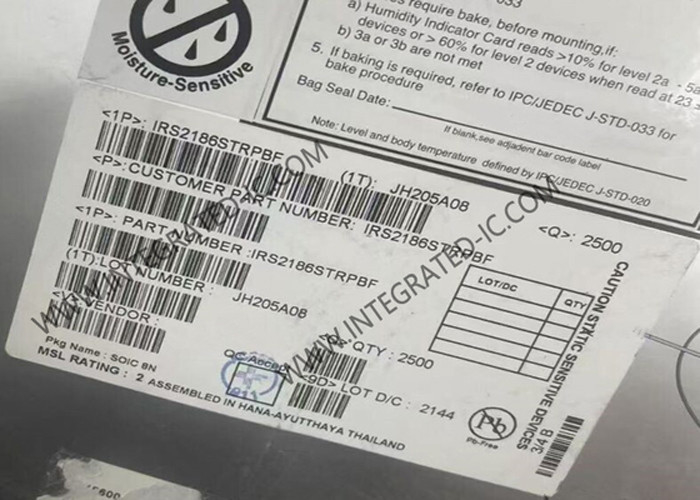

IRS2186STRPBF Integrated Circuit Chip 600V EiceDRIVER High Side And Low Side Gate Driver

IRS2186STRPBF Integrated Circuit Chip 600V EiceDRIVER High Side And Low Side Gate Driver​

Product Description Of IRS2186STRPBF

IRS2186STRPBF is high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 V.

Specification Of IRS2186STRPBF

Features Of IRS2186STRPBF

Floating channel designed for bootstrap operation
Fully operational to +600 V
Tolerant to negative transient voltage, dV/dt immune
Gate drive supply range from 10 V to 20 V
Undervoltage lockout for both channels
3.3 V and 5 V input logic compatible
Matched propagation delay for both channels
Logic and power ground +/- 5 V offset
Lower di/dt gate driver for better noise immunity
Output source/sink current capability 4 A/4 A

Applications Of IRS2186STRPBF
Cordless vacuum cleaners
Home appliances
Industrial automation
Light electric vehicles (LEV)
Power transmission and distribution
