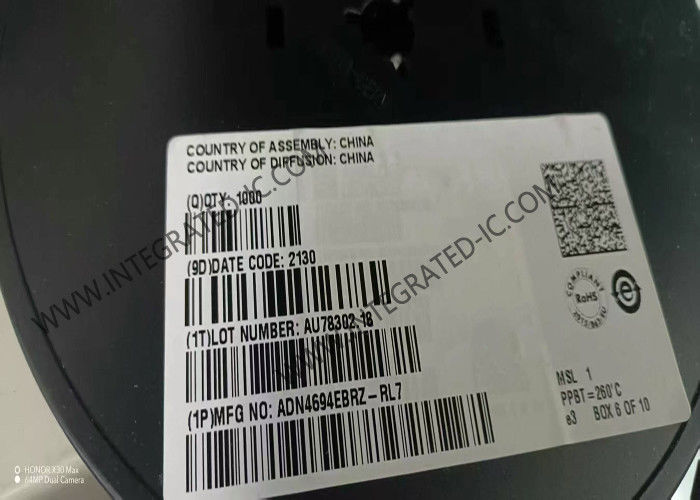

ADN4694EBRZ Integrated Circuit Chip 100Mbps High Speed M-LVDS Transceiver SOIC8

ADN4694EBRZ Integrated Circuit Chip 100Mbps High Speed M-LVDS Transceiver SOIC8

Product Description Of ADN4694EBRZ

ADN4694EBRZ is multipoint, low voltage differential signaling (M-LVDS) transceivers (driver and receiver pairs) that can operate at up to 100 Mbps (50 MHz). Slew rate control is implemented on the driver outputs. The receivers detect the bus state with a differential input of as little as 50 mV over a common-mode voltage range of −1 V to +3.4 V. ESD protection of up to ±15 kV is implemented on the bus pins.

Specification Of ADN4694EBRZ

Features Of ADN4694EBRZ

Multipoint LVDS transceivers (low voltage differential signaling driver and receiver pairs)
Switching rate: 100 Mbps (50 MHz)
Supported bus loads: 30 Ω to 55 Ω
Choice of 2 receiver types
- Type 2 (ADN4694E/ADN4695E): threshold offset of 100 mV for open-circuit and bus-idle fail-safe
Conforms to TIA/EIA-899 standard for M-LVDS
Glitch-free power-up/power-down on M-LVDS bus
Controlled transition times on driver output
Common-mode range: −1 V to +3.4 V, allowing communication with 2 V of ground noise

Applications Of ADN4694EBRZ
Backplane and cable multipoint data transmission
Multipoint clock distribution
Low power, high speed alternative to shorter RS-485 links
Networking and wireless base station infrastructure
