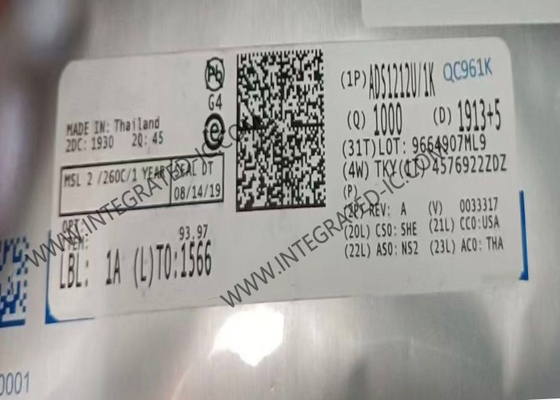

ADS1212U Integrated Circuit Chip 22-Bit Precision Wide Dynamicrange Delta-Sigma Analog To Digital Converters
ADS1212U Integrated Circuit Chip 22-Bit Precision Wide Dynamicrange Delta-Sigma Analog To Digital Converters
Description
Part Number:
ADS1212U
Resolution::
22 Bit
Number Of Channels::
1 Channel
Interface Type::
3-Wire, I2C, SPI
Sampling Rate::
6.25 KS/s
Input Type::
Differential
ADS1212U Integrated Circuit Chip 22-Bit Precision Wide Dynamicrange Delta-Sigma Analog To Digital Converters
Product Description Of ADS1212U
ADS1212U is precision, wide dynamic range, delta-sigma Analog-to-Digital (A/D) converters with 24-bit resolution operating from a single +5V supply. The differential inputs are ideal for direct connection to transducers or low-level voltage signals. The delta-sigma architecture is used for wide dynamic range and to guarantee 22 bits of no missing code performance. An effective resolution of 20 bits is achieved through the use of a very low-noise input amplifier at conversion rates up to 10Hz. Effective resolutions of 16 bits can be maintained up to a sample rate of 1kHz through the use of the unique Turbo Modulator mode of operation. The dynamic range of the converters is further increased by providing a low-noise programmable gain amplifier with a gain range of 1 to 16 in binary steps.
Specifications Of ADS1212U
22 bit
1 Channel
3-Wire, I2C, SPI
6.25 kS/s
Differential
Sigma-Delta
4.75 V to 5.25 V
4.75 V to 5.25 V
- 40 C
+ 85 C
DNL - Differential Nonlinearity:
+/- 1 LSB
Features:
PGA, Internal Reference
Height:
2.3 mm
INL - Integral Nonlinearity:
+/- 0.0015 % FSR
Length:
11.55 mm
Moisture Sensitive:
Yes
Number of Converters:
1 Converter
Operating Supply Voltage:
4.75 V to 5.25 V
Pd - Power Dissipation:
8.5 mW
Reference Voltage:
4.75 V
Supply Voltage - Max:
5.25 V
Supply Voltage - Min:
4.75 V
Width:
7.5 mm
Unit Weight:
541 mg
Features Of ADS1212U
DELTA-SIGMA A/D Converter
22-bit no missing code
20-bit effective resolution at 10Hz and 16 bits at 1000Hz
Low power: 1.4 mW
Differential input
Programmable gain amplifier
SPI compatible SSI interface
Programmable cutoff frequency
Up to 6.25 kHz
Internal/external reference
On-chip self-calibration
ADS 1213 includes 4-channel MUX
Applications Of ADS1212U
Industrial process control
Instrumentation
Blood analysis
Smart transmitter
Portable instrument
Weight scale
Pressure sensor
