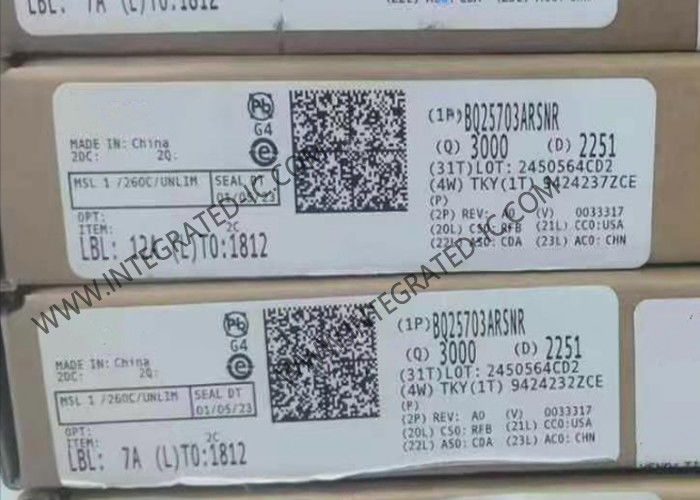

BQ25703ARSNR Integrated Circuit Chip 1-4 Cell NVDC Buck Boost Battery Charge Controller

BQ25703ARSNR Integrated Circuit Chip 1-4 Cell NVDC Buck Boost Battery Charge Controller​

Product Description Of BQ25703ARSNR

BQ25703ARSNR is a synchronous NVDC battery buck-boost charge controller, offering low component count, high efficiency solution for space-constraint, multi-chemistry battery charging applications.

BQ25703ARSNR Charges Battery from a wide range of input sources including USB adapter, high voltage USB PD sources and traditional adapters.

Specification Of BQ25703ARSNR

Features Of BQ25703ARSNR

Charge 1- to 4-Cell Battery From Wide Range of Input Sources
– 3.5-V to 24-V Input Operating Voltage
– Supports USB2.0, USB 3.0, USB 3.1 (Type C), and USB_PD Input Current Settings
– Seamless Transition Between Buck and Boost Operation
– Input Current and Voltage Regulation (IDPM and VDPM) Against Source Overload
Narrow-VDC (NVDC) Power Path Management
– Instant-On With No Battery or Deeply Discharged Battery
– Battery Supplements System When Adapter is Fully-Loaded
Power Up USB Port From Battery (USB OTG)
– Output 4.48-V to 20.8-V Compatible With USB PD
– Output Current Limit up to 6.35 A
800-kHz or 1.2-MHz Programmable Switching Frequency for 1-µH to 3.3-µH Inductor
Host Control Interface for Flexible System Configuration
– I2C (bq25703A) Port for Optimal System Performance and Status Reporting
– Hardware Pin to Set Input Current Limit Without EC Control
Integrated ADC to Monitor Voltage, Current and Power
High Accuracy Regulation and Monitor
– ±0.5% Charge Voltage Regulation
– ±2% Input/Charge Current Regulation
– ±2% Input/Charge Current Monitor
– ±5% Power Monitor
Safety
– Thermal Shutdown
– Input, System, Battery Overvoltage Protection
– MOSFET Inductor Overcurrent Protection
Low Battery Quiescent Current
Input Current Optimizer (ICO) to Extract Max Input Power
Charge Any Battery Chemistry: Li+, LiFePO4, NiCd, NiMH, Lead Acid
Package: 32-Pin 4 × 4 WQFN

Applications Of BQ25703ARSNR
Drones, Bluetooth Speakers, IP Cameras, Detachable, Tablet PCs and Power Bank
Industrial and Medical Equipment
Portable Equipment With Rechargeable Batteries
