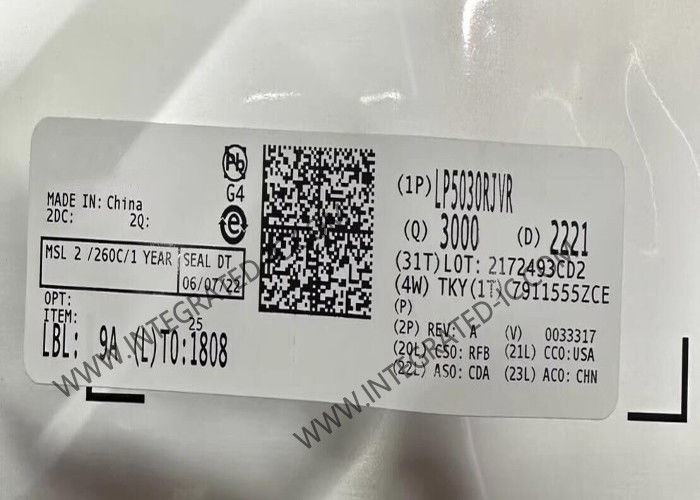

LP5030RJVR Integrated Circuit Chip 35mA Current RGB LED Driver VQFN64 Circuit Chips

LP5030RJVR Integrated Circuit Chip 35mA Current RGB LED Driver VQFN64 Circuit Chips​

Product Description Of LP5030RJVR

LP5030RJVR is a 30-channel constant-current-sink LED driver. The LP5030RJVR has a 29 kHz, 12-Bit PWM generator for each channel, as well as channel/module independent color mixing and intensity control, formerly called brightness control registers to enable vivid LED effects with zero audible noise.

The LP5030RJVR controls each LED output with a 12-bit PWM resolution at 29-kHz switching frequency. This control helps get an intensity that decreases smoothly and stops audible noise.

Specification Of LP5030RJVR

Features Of LP5030RJVR

Operating Voltage Range:
– VCC Range: 2.7 V to 5.5 V
– EN, SDA, and SCL Pins Compatible With 1.8V, 3.3V, and 5-V Power Rails
– Output Maximum Voltage: 6 V
36 Constant-Current Sinks With High Precision
– 25.5 mA Maximum per Channel When VCC in Full Range
– 35 mA Maximum per Channel When VCC ≥ 3.3V
– Device-to-Device Error ±5%; Channel-toChannel Error ±5%
Ultralow Quiescent Current:
– Shutdown Mode: 1 µA (Maximum) When EN Low
– Power Saving Mode: 12 µA (Maximum) When EN High and All LEDs Off for > 30 ms
Integrated 12-Bit, 29-kHz PWM Generator for Each Channel:
– Independent Color-Mixing Register Per Channel
– Independent Brightness-Control Register Per RGB LED Module
– Optional Logarithmic- or Linear-Scale Brightness Control
– Integrated 3-Phase-Shifting PWM Scheme
3 Programmable Banks (R, G, B) for Easy Software Control of Each Color
2 External Hardware Address Pins Allow Connecting up to 4 Devices
Broadcast Slave Address Allows Configuring Multiple Devices Simultaneously
Auto-Increment Allows Writing or Reading Consecutive Registers Within One Transmission
Up to 400-kHz Fast-Mode I2C Speed

Applications Of LP5030RJVR

LED Lighting, Indicator Lights, and Fun Lights for:
Smart Speaker
Smart Home Appliances
Video Doorbell
Electric Smart Lock
Smoke Detector
Set-Top Box
Smart Router
Handheld Devices
