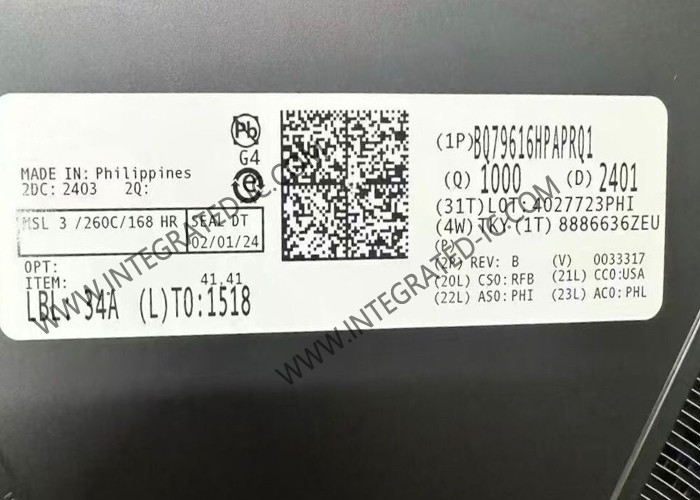

BQ79616HPAPRQ1 Integrated Circuit Chip Automotive Precision Battery Monitor HTQFP-64 Package

BQ79616HPAPRQ1 Integrated Circuit Chip Automotive Precision Battery Monitor HTQFP-64 Package

Product Description Of BQ79616HPAPRQ1
BQ79616HPAPRQ1 provide high-accuracy cell voltage measurements in less than 200 µs for 16S battery modules in high-voltage battery management systems in HEV/EV. The family of monitors offers different channel options in the same package type, providing pin-to-pin compatibility and supporting high reuse of the established software and hardware across any platform. The integrated front-end filters enable the system to implement with simple, low voltage rating, differential RC filters on the cell input channels. The integrated, post-ADC, low-pass filters enable filtered, DC-like, voltage measurements for better state of charge (SOC) calculation. This device supports autonomous internal cell balancing with temperature monitoring to auto-pause and resume balancing to avoid an overtemperature condition.

Specifications Of BQ79616HPAPRQ1

Features Of BQ79616HPAPRQ1
Qualified for automotive applications
AEC-Q100 Qualified with the following results:
Device temperature grade 1: –40°C to +125°C ambient operating temperature range
Device HBM ESD classification level 2
Device CDM ESD classification level C4B
Functional Safety-Compliant
Developed for functional safety applications
Documentation to aid ISO 26262 system design
Systematic capability up to ASIL D
Hardware capability up to ASIL D
+/- 1.5mV ADC accuracy
Built-in redundancy path for voltage and temperature diagnostics
Highly accurate cell voltage measurements within 128 µs for all cell channels
Integrated post-ADC configurable digital low-pass filters
Supports bus bar connection and measurement
Built-in host-controlled hardware reset to emulate POR-like device reset
Supports internal cell balancing
Balancing current at 240 mA
Built-in balancing thermal management with automatic pause and resume control
Isolated differential daisy chain communication with optional ring architecture
Embedded fault signal and heartbeat through communication line
UART/SPI host interface/communication bridge device BQ79600-Q1
Built-in SPI master

Applications Of BQ79616HPAPRQ1
Battery Management System (BMS) in hybrid and electric powertrain systems
Energy storage battery packs with Battery Management Systems
