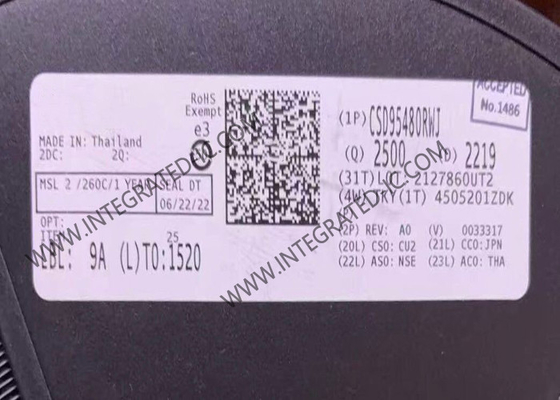

CSD95480RWJ Integrated Circuit Chip 70A Synchronous Buck NexFET Smart Power Stage

CSD95480RWJ Integrated Circuit Chip 70A Synchronous Buck NexFET Smart Power Stage​

Product Description Of CSD95480RWJ

CSD95480RWJ NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. CSD95480RWJ integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. CSD95480RWJ also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy.

Specification Of CSD95480RWJ

Features Of CSD95480RWJ

70A Continuous Operating Current Capability
Over 95% System Efficiency at 30 A
High-Frequency Operation (up to 1.25 MHz)
Diode Emulation Function
Temperature Compensated Bi-Directional Current Sense
Analog Temperature Output
Fault Monitoring
3.3V and 5V PWM Signal Compatible
Tri-State PWM Input
Integrated Bootstrap Switch
Optimized Dead Time for Shoot-Through Protection
High-Density QFN 5-mm × 6-mm Footprint
Ultra-Low-Inductance Package
System Optimized PCB Footprint
Thermally Enhanced Topside Cooling
RoHS Compliant – Lead-Free Terminal Plating
Halogen Free

Applications Of CSD95480RWJ
Multiphase Synchronous Buck Converters
– High-Frequency Applications
– High-Current, Low-Duty Cycle Applications
POL DC-DC Converters
Memory and Graphic Cards
Desktop and Server VR12.x / VR13.x V-Core Synchronous Buck Converters
