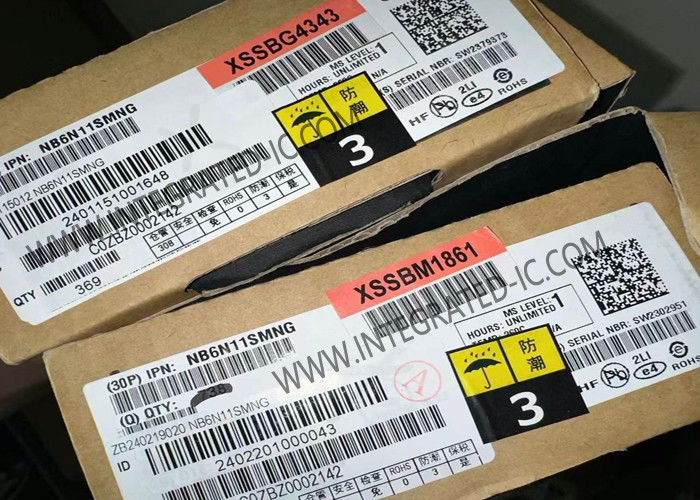

NB6N11SMNG Integrated Circuit Chip 2 GHz Differential Clock Buffer QFN-16 Package

NB6N11SMNG Integrated Circuit Chip 2 GHz Differential Clock Buffer QFN-16 Package

Product Description Of NB6N11SMNG
NB6N11SMNG is a differential 1:2 Clock or Data Receiver and will accept AnyLevelTM input signals: LVPECL, CML, LVCMOS, LVTTL, or LVDS. These signals will be translated to LVDS and two identical copies of Clock or Data will be distributed, operating up to 2.0 GHz or 2.5 Gb/s, respectively. As such, the NB6N11S is ideal for SONET, GigE, Fiber Channel, Backplane and other Clock or Data distribution applications. The NB6N11SMNG has a wide input common mode range from GND + 50mV to VCC - 50 mV. Combined with the 50-ohm internal termination resistors at the inputs, the NB6N11SMNG is ideal for translating a variety of differential or single-ended Clock or Data signals to 350 mV typical LVDS output levels. The NB6N11SMNG is functionally equivalent to the EP11, LVEP11, SG11 or 7L11M devices and is offered in a small 3mm X 3mm 16-QFN package.

Specification Of NB6N11SMNG

Features Of NB6N11SMNG
Maximum Input Clock Frequency > 2.0 GHz
Maximum Input Data Rate > 2.5 Gb/s
1 ps Maximum of RMS Clock Jitter
Typically 10 ps of Data Dependent Jitter
380 ps Typical Propagation Delay
120 ps Typical Rise and Fall Times
These devices are available in Pb-free package(s). Specifications herein

Applications Of NB6N11SMNG
High Performance LVDS Clock and Data Distribution for ATE and Networking
