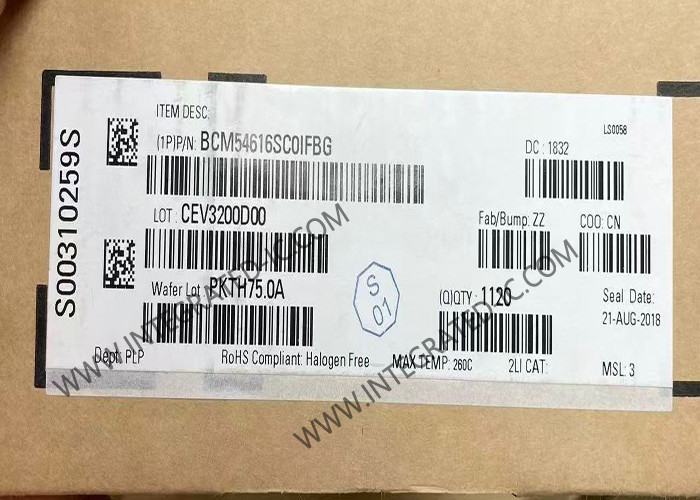

BCM54616SC0IFBG Ethernet IC Single-Chip Integrated Triple-Speed Ethernet Transceiver

BCM54616SC0IFBG Ethernet IC Single-Chip Integrated Triple-Speed Ethernet Transceiver

Product Description Of BCM54616SC0IFBG
BCM54616SC0IFBG is a triple-speed 10/100/1000BASE-T Gigabit Ethernet transceiver integrated into a single monolithic CMOS chip. The device performs all of the Physical Layer (PHY) functions for 1000BASE-T, 100BASE-TX, and 10BASE-T on standard Category 5 UTP cable. The 10BASE-T Ethernet can also run on standard categories 3, 4, and 5 UTP. The BCM54616SC0IFBG is designed to comply with the SGMII industry standard and to exceed IEEE specifications for noise cancellation and transmission jitter, providing consistent and reliable operation over the broadest range of existing cable plants

Features Of BCM54616SC0IFBG
• Single-chip integrated triple-speed Ethernet transceiver.
Support for the following copper line interfaces:
- 1000BASE-T IEEE 802.3ab
- 100BASE-TX IEEE 802.3u
- 100BASE-FX
- 10BASE-T IEEE 802.3™
• RGMII and SGMII MAC interface options
• Integrated voltage regulator
• Low power
- Less than 600 mW per port
- Advanced power management
• Trace-matched output impedance
• Lineside loopback
• Low Electromagnetic Interference (EMI) emissions
• Cable plant diagnostics
- Cable plant analyzer function detects cable plant impairments
- Link quality indication LED
- Automatic detection and correction of wiring pair swaps, pair skew, and pair polarity
- Automatic MDI/MDIX crossover at all speeds
• Robust Cable Electrostatic Discharge (CESD) tolerance
• Support for jumbo packets up to 10 KB
• IEEE 1149.1 (JTAG) boundary scan
• 100-pin FBGA package

Benefits Of BCM54616SC0IFBG
• Simplifies system and board design.
- Reduced I/O pin requirements with RGMII (over 50%).
- On-chip RGMII timing delay
• Provides interoperability with IEEE standard devices operating at 10 Mbps, 100 Mbps, and 1000 Mbps at half- and full-duplex.
• Lowers system Bill of Materials (BOM) cost and simplifies system design.
• Eases system level debug.
• Reduces system design constraints to meet EMI emissions standards.
• Cable diagnostic function characterizes cable plant condition and immediately indicates cabling issues.
- Prevents erroneous equipment return due to bad cable plants.
- Prevents manufacturing fallout due to bad cable plants.
• High CESD tolerance prevents equipment damage and return.
• Operates with larger packets for wider range of packet protocol support and improved efficiency.
• Ease of manufacturing with JTAG support, simplified power supply, and multiple MAC interfaces.
