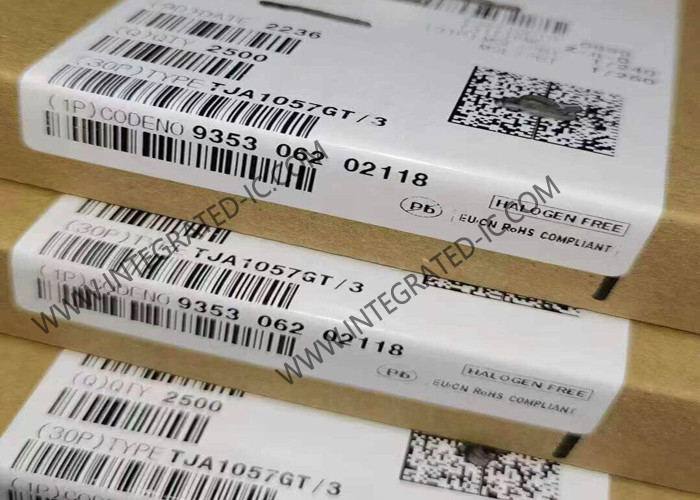

TJA1057GT Integrated Circuit Chip High-Speed CAN Transceiver SOIC-8 Package

TJA1057GT Integrated Circuit Chip High-Speed CAN Transceiver SOIC-8 Package

Product Description Of TJA1057GT
TJA1057GT is part of the Mantis family of high-speed CAN transceivers. It provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.

TJA1057GT offers a feature set optimized for 12 V automotive applications, with significant improvements over first- and second-generation CAN transceivers from NXP, such as the TJA1050, and excellent electro magnetic compatibility (EMC) performance.

TJA1057GT also displays ideal passive behavior to the CAN bus when the supply voltage is off.

Specification Of TJA1057GT

Features Of TJA1057GT
Fully ISO 11898-2:2016, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
Optimized for use in 12 V automotive systems
Low Electromagnetic Emission (EME) and high Electromagnetic Immunity (EMI), according to proposed EMC Standards IEC 62228-3 and SAE J2962-2
AEC-Q100 qualified
Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant)
Shorter propagation delay on the TJA1057B and TJA1057C variants supports larger network topologies
Variants with a VIO pin allow for direct interfacing with 3.3 V to 5 V microcontrollers. Variants without a VIO pin can interface with 3.3 V and 5 V-supplied microcontrollers, provided the microcontroller I/Os are 5 V tolerant.
Functional behavior predictable under all supply conditions
Transceiver disengages from bus when not powered (zero load)
Transmit Data (TXD) dominant time-out function
Internal biasing of TXD and S input pins
High ESD handling capability on the bus pins (8 kV IEC and HBM)
Bus pins protected against transients in automotive environments
Undervoltage detection on pins VCC and VIO
Thermally protected
Timing guaranteed for data rates up to 5 Mbit/s
Improved TXD to RXD propagation delay of 210 ns

Applications Of TJA1057GT
Automotive
12 V automotive systems
Automotive Advanced Exterior Lighting
Automotive high-speed CAN applications
ElectroMagnetic Compatibility (EMC) performance
