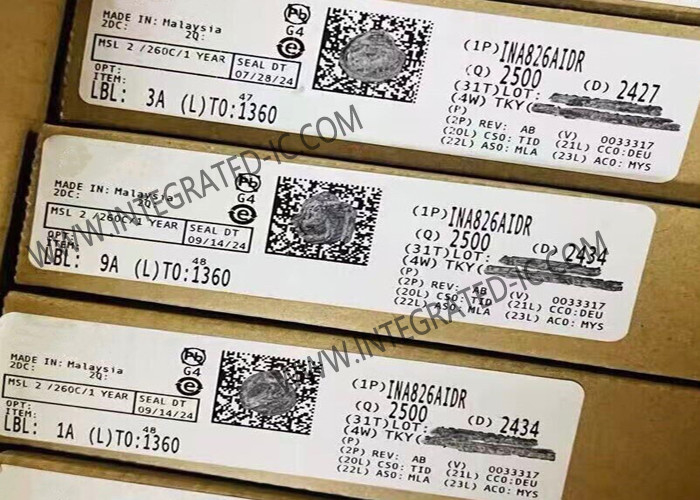

INA826AIDR Integrated Circuit Chip Precision 200μA 36V Instrumentation Amplifier

INA826AIDR Integrated Circuit Chip Precision 200μA 36V Instrumentation Amplifier

Product Description Of INA826AIDR

INA826AIDR is a cost-effective instrumentation amplifier that offers extremely low power consumption and operates over a very wide single-supply or dual-supply range. A single external resistor sets any gain from 1 to 1000. The device offers excellent stability over temperature, even at G > 1, as a result of the low gain drift of only 35 ppm/°C (maximum).

Specifications Of INA826AIDR

Features Of INA826AIDR
Input common-mode range: Includes V–
Common-mode rejection:
104 dB, min (G = 10)
100 dB, min at 5 kHz (G = 10)
Power-supply rejection: 100 dB, min (G = 1)
Low offset voltage: 150 µV, max
Gain drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)
Noise: 18 nV/√Hz, G ≥ 100
Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)
Inputs protected up to ±40 V
Rail-to-rail output
Supply current: 200 µA
Supply range:
Single supply: 3 V to 36 V
Dual supply: ±1.5 V to ±18 V
Specified temperature range:
–40°C to +125°C
Packages: 8-pin VSSOP, SOIC, and WSON

Applications Of INA826AIDR
Analog input module
Flow transmitter
Battery test
LCD test
Electrocardiogram (ECG)
Surgical equipment
Process analytics (pH, gas, concentration, forceand humidity)
Circuit breaker (ACB, MCCB, VCB)
