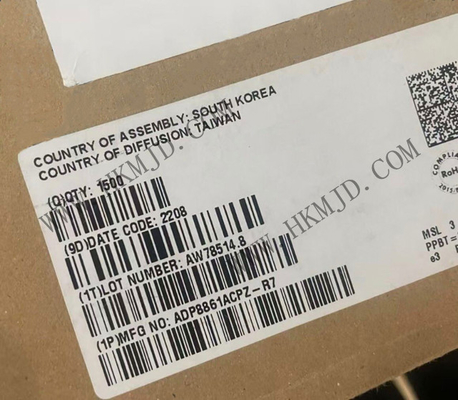

ADP8861ACPZ Integrated Circuit Chip 7 Channel Smart LED Driver IC LED Lighting Driver

ADP8861ACPZ Integrated Circuit Chip 7 Channel Smart LED Driver IC LED Lighting Driver​

Product Description Of ADP8861ACPZ

ADP8861ACPZ is Charge Pump, 7-Channel Smart LED Driver with I2C Interface. ADP8861ACPZ provides a powerful charge pump driver with independent control of up to seven LEDs. These seven LEDs can be independently driven up to 30 mA (typical). The seventh LED can also be driven to 60 mA (typical). All LEDs are programmable for maximum current and fade in/out times via the I2C interface.

Specification Of ADP8861ACPZ

Features Of ADP8861ACPZ

Charge pump with automatic gain selection of 1×, 1.5×, and 2× for maximum efficiency
7 independent, programmable LED drivers
7 drivers capable of 30 mA (typical)
1 driver also capable of 60 mA (typical)
Programmable maximum current limit (128 levels)
Standby mode for <1 μA current consumption
16 programmable fade in and fade out time
0.1 sec to 5.5 sec
Choose from linear, square, or cubic rates
Fading override
I2C-compatible interface for all programming
Dedicated reset pin and built-in power-on reset (POR)
Short-circuit, overvoltage, and overtemperature protection
Internal soft start to limit inrush currents
Input-to-output isolation during faults or shutdown
Operation down to VIN = 2.5 V with undervoltage lockout (UVLO) at VIN = 2.0 V

Applications Of ADP8861ACPZ

Mobile display backlighting
Mobile phone keypad backlighting
Dual RGB backlighting
LED indication
General backlighting of small format displays
