ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16

ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16
ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16
ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16 ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16

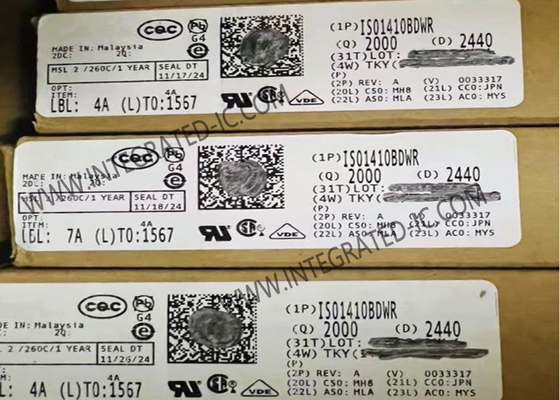

Large Image :  ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ISO1410BDWR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-16
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16

Description
Part Number: ISO1410BDWR Type: Transceiver, Isolated
Protocol: RS422, RS485 Number Of Drivers/Receivers: 1/1
Receiver Hysteresis: 30 MV Data Rate: 500kbps

ISO1410BDWR Integrated Circuit Chip 500kbps Isolated RS-485 RS-422 Transceiver SOIC16​



Product Description Of ISO1410BDWR

ISO1410BDWR is galvanically-isolated differential line transceivers for TIA/EIA RS-485 and RS-422 applications. These noise-immune transceivers are designed to operate in harsh industrial environments.


Specification Of ISO1410BDWR

Part Number: ISO1410BDWR
SMD/SMT
SOIC-16
Transceiver
1 Driver
1 Receiver
500 kb/s
5.5 V
1.71 V
- 40 ℃
+ 125 ℃
Duplex: Half/Full Duplex
Input Voltage: 1.71 V to 5.5 V
Operating Supply Voltage: 3.3 V, 5 V
Output Current: 60 mA
Pd - Power Dissipation: 363 mW
Product: RS-422/RS-485 Transceivers
Product Type: RS-422/RS-485 Interface IC
Propagation Delay Time: 92 ns, 310 ns


Features Of ISO1410BDWR

Compatible with TIA/EIA-485-A
PROFIBUS compatible at 5V bus-side supply
Bus I/O protection
– ±30kV HBM
– ±16kV IEC 61000-4-2 Contact discharge
– ±4kV IEC 61000-4-4 Electrical fast transient
Low-EMI 500kbps, 12Mbps and 50Mbps Data Rates
1.71V to 5.5V logic-side supply (VCC1), 3V to 5.5V bus-side supply (VCC2)
Failsafe receiver for bus open, short, and idle
1/8 Unit load up to 256 nodes on bus
100kV/µs (typical) high common-mode transient immunity
Extended temperature range from –40°C to 125°C
Glitch-free power-up and power-down for hot plugin
Wide-body SOIC-16 package
Pin compatible to most isolated RS-485 transceivers


Applications Of ISO1410BDWR

Grid infrastructure
Solar inverter
Factory automation and control
Motor drives
HVAC systems and building automation
