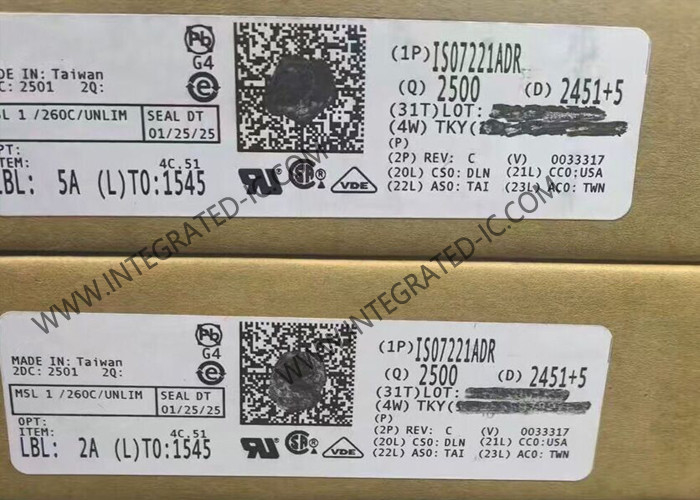

ISO7221ADR Integrated Circuit Chip 2500Vrms Dual Channel Digital Isolators SOIC8

ISO7221ADR Integrated Circuit Chip 2500Vrms Dual Channel Digital Isolators SOIC8​

Product Description Of ISO7221ADR

ISO7221ADR is dual-channel digital isolators. It require two supply voltages of 2.8V (C-Grade), 3.3V, 5V, or any combination. All inputs are 5V tolerant when supplied from a 2.8V or 3.3V supply and all outputs are 4mA CMOS.

Specification Of ISO7221ADR

Features Of ISO7221ADR

1, 5, 25, and 150Mbps Signaling Rate Options
– Low Channel-to-Channel Output Skew; 1ns Max
– Low Pulse-Width Distortion (PWD); 1ns Max
– Low Jitter Content; 1ns Typ at 150Mbps
50kV/μs Typical Transient Immunity
Operates with 2.8V (C-Grade), 3.3V, or 5V Supplies
4kV ESD Protection
High Electromagnetic Immunity
–40°C to +125°C Operating Range

Applications Of ISO7221ADR
Factory Automation
– Modbus
– Profibus™
– DeviceNet™ Data Buses
Computer Peripheral Interface
Servo Control Interface
Data Acquisition
