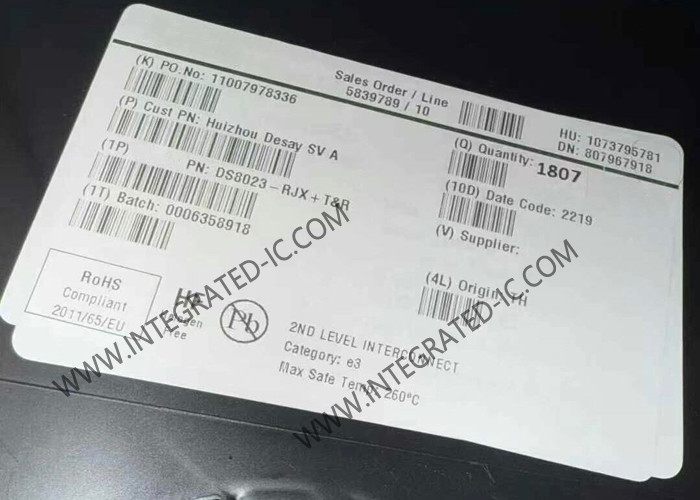

DS8023-RJX Integrated Circuit Chip Low-Power Smart Card Interface IC TSSOP-28
DS8023-RJX Integrated Circuit Chip Low-Power Smart Card Interface IC TSSOP-28
Description
Part Number:
DS8023-RJX
Supply Voltage - Min::
2.7 V
Supply Voltage - Max::
6 V
Operating Supply Current::
500 UA
Minimum Operating Temperature::
- 40 C
Maximum Operating Temperature::
+ 85 C
Highlight:
DS8023-RJX
,
DS8023-RJX Integrated Circuit Chip
,
Low-Power Smart Card Interface IC
DS8023-RJX Integrated Circuit Chip Low-Power Smart Card Interface IC TSSOP-28
Product Description Of DS8023-RJX
DS8023-RJX smart card interface IC is a low-cost, low-power, analog front-end for a smart card reader designed for all ISO 7816, EMV, and GSM11-11 applications. The DS8023-RJX supports 5V, 3V, and 1.8V smart cards, and provides an option for ultra-low stop-mode power consumption. The DS8023-RJX is available in 28-pin TSSOP packages, and can often be used as a replacement for the TDA8024 with little or no application changes.
DS8023-RJX is designed to interface between a system microcontroller and the smart card interface, providing all power supply, protection, and level shifting required for IC card applications.
Specifications Of DS8023-RJX
2.7 V
6 V
500 uA
- 40 C
+ 85 C
700 mW
Unit Weight:
403 mg
Features Of DS8023-RJX
Analog Interface and Level Shifting for IC Card Communication
±8kV (min) ESD (IEC) Protection on Card Interface Pins
Ultra-Low Stop-Mode Current, Less Than 10nA (typ)
Internal IC Card-Supply Voltage Generation
5.0V ±5%, 80mA (max)
3.0V ±8%, 65mA (max)
1.8V ±10%, 30mA (max)
Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer
I/O Lines from Host Directly Level Shifted for Smart Card Communication
Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1, 2, 4, or 8
High-Current/Short-Circuit and High-Temperature Protection
Applications Of DS8023-RJX
Access Control
Automated Teller Machines
Banking Applications
Debit/Credit Payment Terminals
Pay/Premium Television
PIN Pads
POS Terminals
Set-Top Box Conditional Access
Telecommunications
