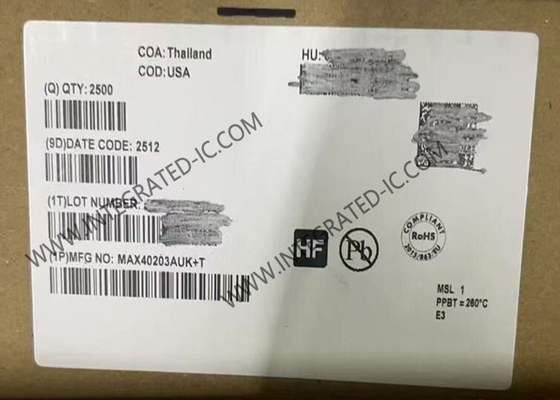

MAX40203AUK Integrated Circuit Chip 1A Ideal Diodes SOT-23-5 Ideal Diode Current Switch

MAX40203AUK Integrated Circuit Chip 1A Ideal Diodes SOT-23-5 Ideal Diode Current Switch ​

Product Description Of MAX40203AUK

MAX40203AUK is an ideal diode current-switch with forward voltage drop that is approximately an order of magnitude smaller than that of Schottky diodes. When forward biased and enabled, the MAX40203AUK conducts with 90mV of voltage drop while carrying currents as high as 1A. During a short-circuit or a fast power-up, the device limits its output current to 2A. The MAX40203AUK thermally protects itself and any downstream circuitry from overcurrent conditions.

Specification Of MAX40203AUK

Features Of MAX40203AUK

Lower Voltage Drop in Portable Applications
14mV Forward Drop at 1mA (WLP)
16mV Forward Drop at 100mA (WLP)
43mV Forward Drop at 500mA (WLP)
90mV Forward Drop at 1A (WLP)
Longer Battery Life
Low Leakage When Reverse-Biased from VDD:
10nA (typ)
Low Supply Quiescent Current
300nA (typ), 500nA (max)
Smaller Footprint Than Larger Schottky Diodes
5-Pin SOT23 Package
Wide Supply Voltage Range: 1.2V to 5.5V
Thermally Self-Protecting
-40°C to +125° C Operating Temperature Range

Applications Of MAX40203AUK
Battery Backup Systems
Cellular Phones
Electronic Toys
Notebook and Tablet Computers
Portable Medical Devices
Powerline Fault Recorders
USB-Powered Peripherals
