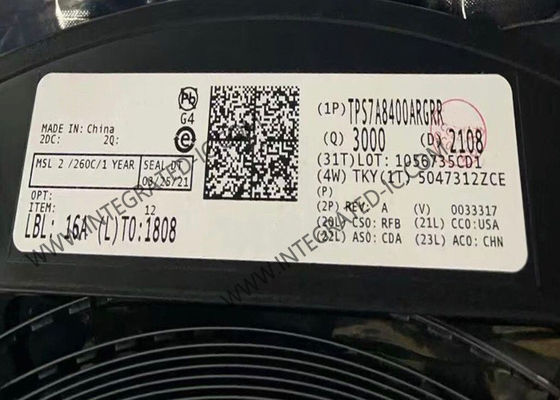

TPS7A8400ARGRR Integrated Circuit Chip 3A Low Drop Out Regulators VQFN20 LDO Regulator

TPS7A8400ARGRR Integrated Circuit Chip 3A Low Drop Out Regulators VQFN20 LDO Regulator​

Product Overviews Of TPS7A8400ARGRR

TPS7A8400ARGRR is a low-noise, low-dropout linear regulator (LDO) capable of sourcing 3 A with only 180-mV of maximum dropout.
TPS7A8400ARGRR output voltage is pin-programmable from 0.8 V to 3.95 V, with a 50-mV resolution, and adjustable from 0.8 V to 5.15 V using an external resistor divider.

Specification Of TPS7A8400ARGRR

Features Of TPS7A8400ARGRR

Low dropout: 180 mV (maximum) at 3 A with BIAS
0.75% (maximum) accuracy over line, load, and temperature with BIAS
Output voltage noise: 4.4 µVRMS
Input voltage range:
– Without BIAS: 1.4 V to 6.5 V
– With BIAS: 1.1 V to 6.5 V
TPS7A8400ARGRR output voltage range:
– Adjustable operation: 0.8 V to 5.15 V
– ANY-OUT™ operation: 0.8 V to 3.95 V
Power-supply ripple rejection:
– 40 dB at 500 kHz
Excellent load transient response
Adjustable soft-start in-rush control
Open-drain power-good (PG) output

Applications Of TPS7A8400ARGRR
Macro remote radio units (RRU)
Outdoor backhaul units
Active antenna system mMIMO (AAS)
Ultrasound scanners
Lab and field instrumentation
Sensor, imaging, and radar
