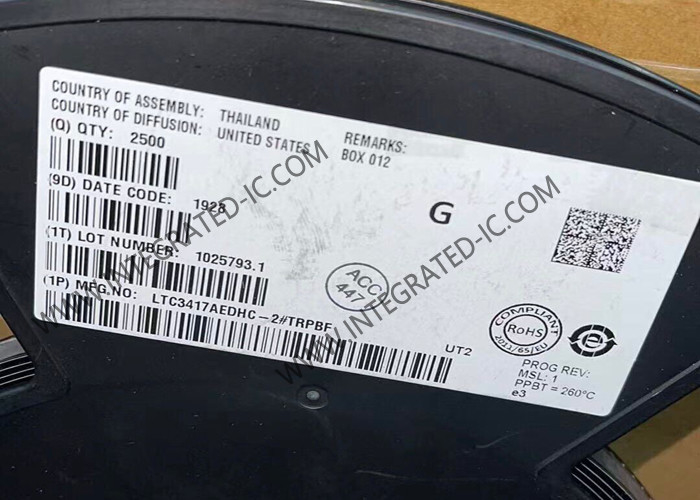

LTC3417AEDHC-2 Integrated Circuit Chip 4MHz Synchronous Step Down DC DC Regulator

LTC3417AEDHC-2 Integrated Circuit Chip 4MHz Synchronous Step Down DC DC Regulator​

Product Description Of LTC3417AEDHC-2

LTC3417AEDHC-2 is a dual constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, LTC3417AEDHC-2 operates from a 2.25V to 5.5V input voltage range and has a constant programmable switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.8V to 5V. Internal synchronous, low RDS(ON) power switches provide high efficiency without the need for external Schottky diodes.

Specification Of LTC3417AEDHC-2

Features Of LTC3417AEDHC-2

High Efficiency: Up to 95%
1.5A/1A Guaranteed Minimum Output Current
Synchronizable to External Clock
No Schottky Diodes Required
Programmable Frequency Operation: 1.5MHz or Adjustable From 0.6MHz to 4MHz
Low Ripple (<35mVP-P) BurstMode® Operation
IQ: 125μA in Sleep
Low RDS(ON) Internal Switches
Short-Circuit Protected
VIN: 2.25V to 5.5V
Current Mode Operation for Excellent Line and Load Transient Response
Ultralow Shutdown Current: IQ < 1μA
Low Dropout Operation: 100% Duty Cycle
Power Good Ouput
Phase Pin Selects 2nd Channel Phase Relationship with Respect to 1st Channel
Internal Soft-Start with Individual Run Pin Control

Applications Of LTC3417AEDHC-2

GPS/Navigation Systems
Automotive Instrumentation
PC Cards
Industrial Power Supplies
General Purpose Point of Load DC/DC
