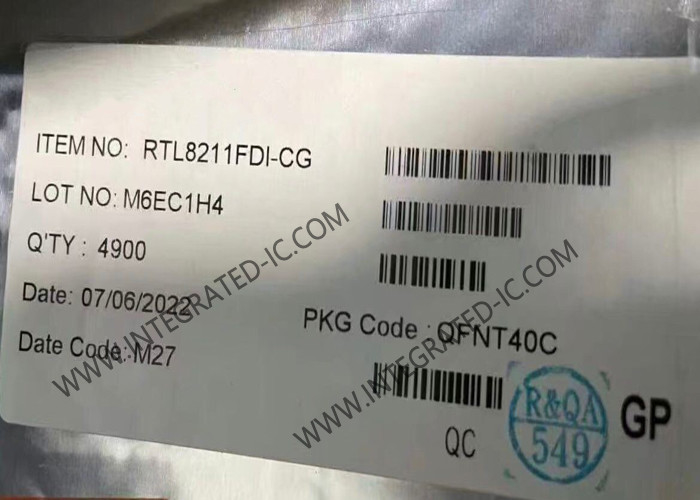

RTL8211FDI-CG Ethernet IC Highly Integrated 10/100/1000M Ethernet Transceiver

RTL8211FDI-CG Ethernet IC Highly Integrated 10/100/1000M Ethernet Transceiver

Products Description Of RTL8211FDI-CG
RTL8211FDI-CG is a highly integrated Ethernet transceiver that is compatible with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards. It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5 UTP cable.

RTL8211FDI-CG uses state-of-the-art DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented in the RTL8211FDI-CG to provide robust transmission and reception capabilities at 10Mbps, 100Mbps, or 1000Mbps.

Feature Of RTL8211FDI-CG
1000Base-T IEEE 802.3ab compatible
100Base-TX IEEE 802.3u compatible
10Base-T IEEE 802.3 compatible
Supports RGMII
Supports IEEE 802.3az-2010 (Energy Efficient Ethernet)
Built-in Wake-on-LAN (WOL)
Supports Interrupt function
Supports Parallel Detection
Crossover Detection & Auto-Correction
Automatic polarity correction
Supports PHYRSTB core power Turn-Off
Baseline Wander Correction
Supports 120m for CAT.5 cable in 1000Base-T
Selectable 3.3/2.5/1.8/1.5V signaling for RGMII
Supports 25MHz external crystal or OSC
Provides 125MHz clock source for MAC
Provides 3 network status LEDs
Supports Link Down power saving
Green Ethernet (1000/100Mbps mode only)
Built-in Switching LDO
40-pin QFN Green package
55 nm process with ultra-low power consumption

Applications Of RTL8211FDI-CG
DTV (Digital TV)
MAU (Media Access Unit)
CNR (Communication and Network Riser)
Game Console
Printer and Office Machine
DVD Player and Recorder
Ethernet Hub
Ethernet Switch
