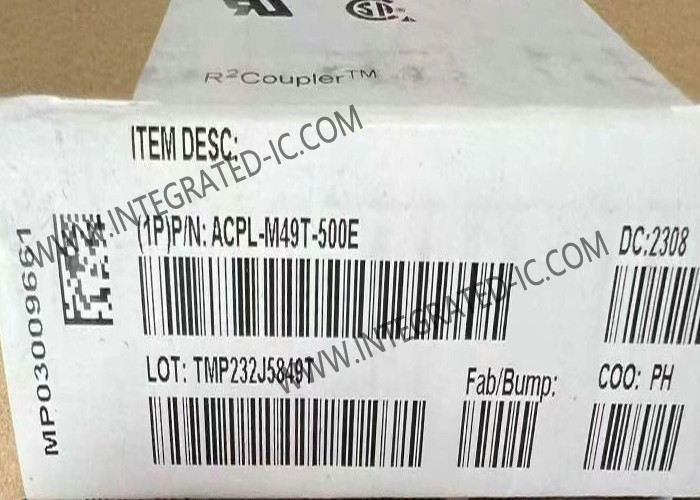

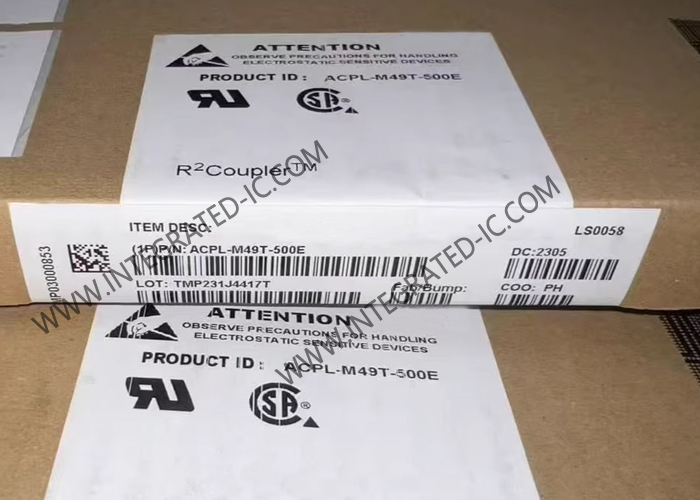

ACPL-M49T-500E Integrated Circuit Chip R2Coupler 20kBd Digital Optocoupler SO-5

ACPL-M49T-500E Integrated Circuit Chip R2Coupler 20kBd Digital Optocoupler SO-5

Product Description Of ACPL-M49T-500E

ACPL-M49T-500E is a single-channel, high temperature, high CMR, 20-kBd digital optocoupler, configurable as a low power, low leakage phototransistor, specifically for use in the automotive applications.
ACPL-M49T-500E has an increased common mode transient immunity of 15kV/µs minimum at VCM = 1500V over extended temperature range.

Specification Of ACPL-M49T-500E

Features Of ACPL-M49T-500E

Qualified to Automotive AEC-Q100 Test Guidelines
High temperature and reliable low-speed digital interface for automotive applications
Wide temperature range: –40°C to 125°C
30 kV/µs high common-mode rejection at VCM = 1500V (typ)
Low power, low leakage phototransistor in a 4-pin configuration
Compact, auto-insertable SO5 packages
Low LED drive current: 4 mA (typ)
Propagation delay: 20 µs (max)

Applications Of ACPL-M49T-500E
Automotive low-speed digital signal isolation interface
Inverter fault feedback signal isolation
Switching power supplies feedback circuit
