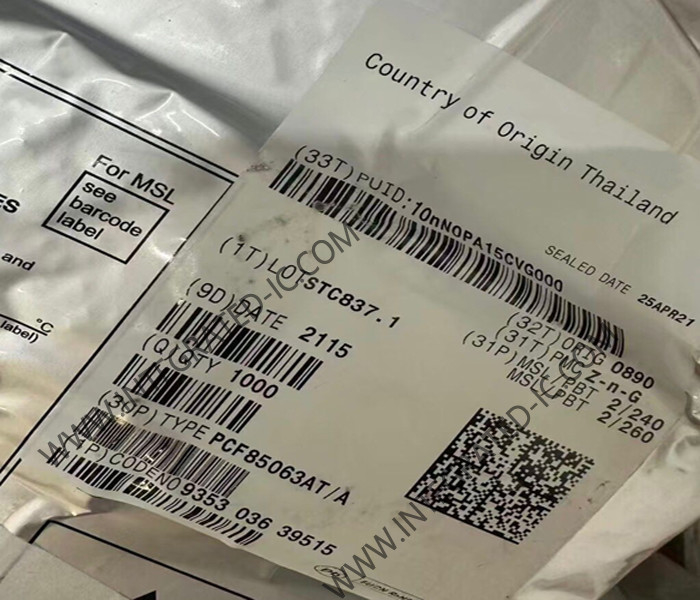

PCF85063AT Integrated Circuit Chip 2-Wire Serial Tiny Real Time Clock And Calendar

PCF85063AT Integrated Circuit Chip 2-Wire Serial Tiny Real Time Clock And Calendar​

Product Description Of PCF85063AT

PCF85063AT is Tiny Real-Time Clock/calendar with alarm function and I2C-bus. It is optimized for low power consumption. An offset register allows fine-tuning of the clock. All addresses and data are transferred serially via the two-line bidirectional I2C bus. Maximum data rate is 400 kbit/s. The register address is incremented automatically after each written or read data byte.

Specification Of PCF85063AT

Features Of PCF85063AT

Provides year, month, day, weekday, hours, minutes, and seconds based on a 32.768 kHz quartz crystal
Clock operating voltage: 0.9 V to 5.5 V
Low current; typical 0.22 μA at VDD = 3.3 V and Tamb = 25 °C
400 kHz two-line I2C-bus interface (at VDD = 1.8 V to 5.5 V)
Programmable clock output for peripheral devices (32.768 kHz, 16.384 kHz, 8.192 kHz, 4.096 kHz, 2.048 kHz, 1.024 kHz, and 1 Hz)
Selectable integrated oscillator load capacitors for CL = 7 pF or CL = 12.5 pF
Alarm function
Countdown timer
Minute and half minute interrupt
Oscillator stop detection function
Internal Power-On Reset (POR)
Programmable offset register for frequency adjustment

Applications Of PCF85063AT

Digital still camera
Digital video camera
Printers
Copy machines
Mobile equipment
Battery powered devices

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
